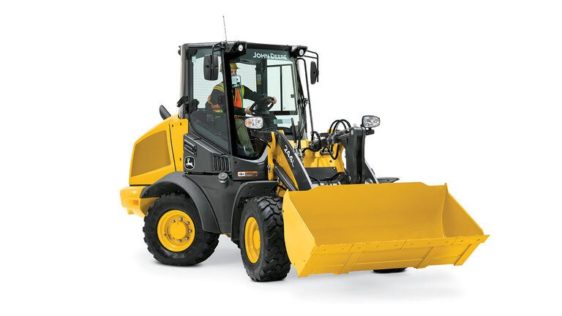

John Deere 244L Wheel Loader

Images may depict options and attachments not included in base price.

Get More Information

Provide some information and our team will follow up with you.

Features

An EPA Final Tier 4 (FT4)/EU Stage V emission-certified four-cylinder diesel engine helps this compact loader deliver power without compromise.

Articulation Plus™ Steering System combines 30 degrees of articulation with an additional 10 degrees of rear-wheel steering.

New design improves the lifting path to near parallel – for better load-carrying capability than previous compact loader models.

With a standard speed of up to 23 mph, the 244L Compact Wheel Loader can make some pretty quick moves on and between jobsites.

Specs & Compare

CLOSEST COMPARISON

ADD MODEL

Add Model

CLOSEST COMPARISON

ADD MODEL

Specs & Compare

Select up to 4 models to compare specifications

John Deere

244L

Wheel Loader

Height – Over Cab, mm (ft/in)	2750 (9 ft )
Wheelbase, mm (ft/in)	2150 (7 ft 1 in)
Length – Including Bucket, mm (ft/in)	5410 (17 ft 9 in)
Ground clearance, mm (inches)	285 (11)
Width Over tires – Std, mm (ft/in)	1920 (6 ft 4 in)
Height – Pivot Pin, mm (ft/in)	3220 (10 ft 7 in)
Reach – At 2130mm 45° Dump, mm (ft/in)	1520 (5 ft )
Turning Circle – Maximum, mm (ft/in)	7940 (26 ft 1 in)

Fuel Tank, ltr (gallons (US))	90 (23.8)
Hydraulic Tank, ltr (gallons (US))	66 (17.4)
Axle – Front, ltr (gallons (US))	5.2 (1.375)
Axle – Rear, ltr (gallons (US))	4.7 (1.25)
Transmission, ltr (gallons (US))	1.7 (0.45)
Heaped Capacity, m³ (yd³)	0.8 (1)
Bucket Capacity – Smallest, m³ (yd³)	0.8 (1)
Largest bucket capacity, m³ (yd³)	1.1 (1.4)
Breakout – Bucket , kgf (lbf)	4895 (10792)
Ride Control System	Optional
System Voltage, V	12
Alternator Output, Amp	80
Pump Type	Gear
Pump Flow – 1, lt/min (gallons (US) / min)	70 (18)
System Pressure, bar (PSI)	230 (3335)

Operating Weight, kg (lbs)	5560 (12258)
