- Net Power: 52kW (71 hp)
- Operating Weight: 6400 kg (14,110 lb.)
- Bucket Capacity: 0.8–1.6 m3 (1.0–2.1
cu. yd.)

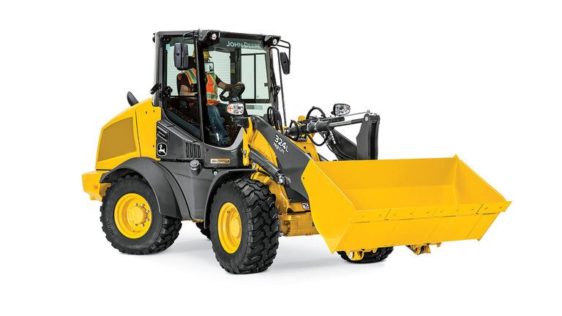

John Deere 324L Wheel Loader
Images may depict options and attachments not included in base price.
Get More Information
Provide some information and our team will follow up with you.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications |
John Deere 324L Wheel Loader |
DRIVELINE
| Engine Manufacturer | Yanmar | |||
|---|---|---|---|---|
| Engine Model | 4TNV98CT | |||
| Emission Rating | Tier 4 | |||
| Displacement, ltr (Inches³) | 3.3 (203) | |||
| Rated Speed, rpm | 2400 | |||
| Engine Output – Net, kW (hp) | 52 (71) | |||
| Torque, Nm (lbf / ft) | 280 (206) | |||
| Transmission Type | Hydrostatic | |||
| Front Differential Type | Locking | |||
| Rear Differential Type | Open | |||
| Tire size – Standard | 405 / 70 R18 | |||
| Service Brake – Type | Wet Disc & Drum | |||
| Service Brake – Location | All Wheels | |||
| Service Brake – Actuation | Hydraulic | |||
| Parking Brake – Type | Wet Disc |
DIMENSIONS
| Height – Over Cab, mm (ft/in) | 2780 (9 ft 1 in) | |||
|---|---|---|---|---|
| Wheelbase, mm (ft/in) | 2300 (7 ft 7 in) | |||
| Length – Including Bucket, mm (ft/in) | 5650 (18 ft 6 in) | |||
| Ground clearance, mm (inches) | 295 (12) | |||
| Width Over tires – Std, mm (ft/in) | 2090 (6 ft 10 in) | |||
| Height – Pivot Pin, mm (ft/in) | 3350 (11 ft ) | |||
| Reach – At 2130mm 45° Dump, mm (ft/in) | 1660 (5 ft 5 in) | |||
| Turning Circle – Maximum, mm (ft/in) | 8550 (28 ft 1 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 90 (23.8) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 66 (17.4) | |||
| Axle – Front, ltr (gallons (US)) | 7.4 (1.95) | |||
| Axle – Rear, ltr (gallons (US)) | 6.8 (1.8) | |||
| Transmission, ltr (gallons (US)) | 1.7 (0.45) | |||
| Heaped Capacity, m³ (yd³) | 1.1 (1.4) | |||
| Bucket Capacity – Smallest, m³ (yd³) | 1.1 (1.4) | |||
| Largest bucket capacity, m³ (yd³) | 1.6 (2.1) | |||
| Breakout – Bucket , kgf (lbf) | 5650 (12456) | |||
| Ride Control System | Optional | |||
| System Voltage, V | 12 | |||
| Alternator Output, Amp | 80 | |||
| Pump Type | Gear | |||
| Pump Flow – 1, lt/min (gallons (US) / min) | 93 (25) | |||
| System Pressure, bar (PSI) | 189.6 (2750) |
WEIGHTS
| Operating Weight, kg (lbs) | 6400 (14110) |
|---|
