- Gross Power: 78 kW (106 hp)
- Net Power: 76 kW (103 hp)
- Operating Weight: 8860 kg (19,533 lb.)
- Bucket Capacities: 1.5–2.0 m3 (2.0–2.6
cu. yd.)

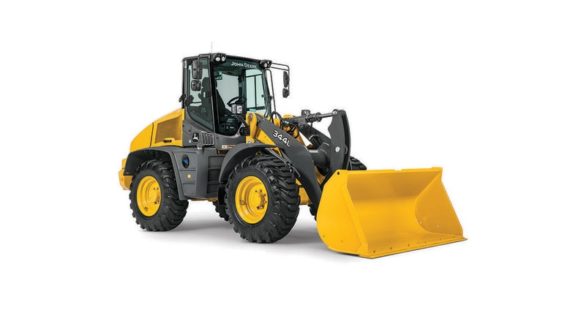

John Deere 344L Wheel Loader
Images may depict options and attachments not included in base price.
Get More Information
Provide some information and our team will follow up with you.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications |
John Deere 344L Wheel Loader |
DRIVELINE
| Engine Manufacturer | John Deere | |||
|---|---|---|---|---|
| Engine Model | PowerTech 4045T | |||
| Emission Rating | Tier 4 | |||
| Displacement, ltr (Inches³) | 4.5 (275) | |||
| Rated Speed, rpm | 2000 | |||
| Engine Output – Net, kW (hp) | 76 (103) | |||
| Torque, Nm (lbf / ft) | 405 (299) | |||
| Transmission Type | Hydrostatic | |||
| Front Differential Type | Locking | |||
| Rear Differential Type | Open | |||
| Tire size – Standard | 17.5 R25 | |||
| Service Brake – Type | Wet Disc & Drum | |||
| Service Brake – Location | Driveline | |||
| Service Brake – Actuation | Hydraulic | |||
| Parking Brake – Type | Wet Disc |
DIMENSIONS
| Height – Over Cab, mm (ft/in) | 3030 (9 ft 11 in) | |||
|---|---|---|---|---|
| Wheelbase, mm (ft/in) | 2600 (8 ft 6 in) | |||
| Length – Including Bucket, mm (ft/in) | 6300 (20 ft 8 in) | |||
| Ground clearance, mm (inches) | 430 (16.9) | |||
| Width Over tires – Std, mm (ft/in) | 2380 (7 ft 10 in) | |||
| Height – Pivot Pin, mm (ft/in) | 3720 (12 ft 2 in) | |||
| Reach – At 2130mm 45° Dump, mm (ft/in) | 1640 (5 ft 5 in) | |||
| Turning Circle – Maximum, mm (ft/in) | 4590 (15 ft 1 in) |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 155 (40.9) | |||
|---|---|---|---|---|
| Hydraulic Tank, ltr (gallons (US)) | 115 (30.4) | |||
| Axle – Front, ltr (gallons (US)) | 7.5 (1.975) | |||
| Axle – Rear, ltr (gallons (US)) | 7.5 (1.975) | |||
| Transmission, ltr (gallons (US)) | 2 (0.525) | |||
| Heaped Capacity, m³ (yd³) | 1.5 (2) | |||
| Bucket Capacity – Smallest, m³ (yd³) | 1.5 (2) | |||
| Largest bucket capacity, m³ (yd³) | 2 (2.6) | |||
| Breakout – Bucket , kgf (lbf) | 7443.9 (16411) | |||
| Ride Control System | Optional | |||
| System Voltage, V | 12 | |||
| Alternator Output, Amp | 90 | |||
| Pump Type | Gear | |||
| Pump Flow – 1, lt/min (gallons (US) / min) | 115 (30) | |||
| System Pressure, bar (PSI) | 240 (3480) |
WEIGHTS
| Operating Weight, kg (lbs) | 8860 (19533) |
|---|
