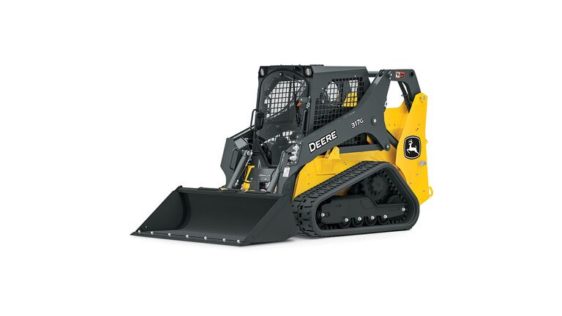

John Deere 317G Compact Track Loader



Images may depict options and attachments not included in base price.

Apply for Financing

Get More Information

Get More Information

Risk Free Guarantee

Risk Free GuaranteeWe guarantee you will be 100% satisfied with your purchase or we will refund or exchange it for free.

Pricing does not include applicable freight, setup, taxes, delivery, and other fees.

Small machines. Big results.

Don’t let the size fool you. Whether you’re acquiring your first machine or adding to a fleet, the John Deere 317G Compact Track Loader is all-in for you. Incorporating many of the same durability and reliability features found on our larger machines, it’s part of our compact construction lineup that’s as tough as they come. Uptime advantages such as rugged Yanmar engines, in-boom hydraulic lines and wiring, large coolers, and extended service intervals help keep downtime down.

With our G-Series Compact Track Loaders, you’ll get a mini machine that you can count on to have plenty of muscle for every project. Landscaping, hauling, stall cleanup, hay work, ground maintenance – you’ve got plenty of choices for how you want to get in, get comfortable, and get on with it. And once you see how these loaders are built, you’ll really see what they can do.

Contact us today for more information on the John Deere 317G Compact Track Loader, and see why Van Wall is the Midwest’s clear first choice for over 70 years!

  • Rated Operating Capacity: 2,125 lb (965 kg)
  • Gross Horsepower: 65 hp (48.5 kW)
  • Net Horsepower: 61 hp (45.6 kW)
  • Operating Weight: 8,423 lb (3,824 kg)

Increase your machine’s versatility with John Deere’s wide array of attachment offerings

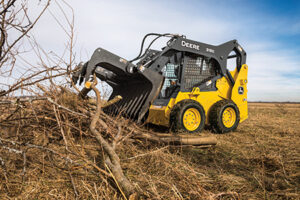

John Deere 317G Compact Track Loader AttachmentsWith over 100 attachments offered in the John Deere portfolio, you can make the most out of your skid steer by equipping it with several popular attachments.

  • Increased auxiliary hydraulic flows and power over previous models enable greater performance while running attachments.
  • Optional electrically-actuated Quik-Tatch™ allows operators to connect certain attachments from within the cab, reducing the need for exiting and re-entering to manually connect attachments.
  • Creep control (offered within the Joystick Performance Package) allows operators to perform precise tasks that require full hydraulic flow and power while running at lower travel speeds.
  • Vertical lift configuration on the 317G and 318G allows for higher attachment reach and increased stability.

Enjoy all day comfort and operational ease with the spacious, updated cab

John Deere 317G Compact Track Loader CabTo maximize productivity and comfort, an array of enhancements have been made to the cab and controls to keep operators satisfied throughout the entire day.

  • 25% more cab volume than the E-Series, including the addition of a lap bar.
  • The sealed and pressurized cab reduces outside noise and keeps the dust out.
  • Optional air-ride heated seat provides customers working throughout the cold winter months increased comfort.
  • Optional Bluetooth™ radio enables streaming of content from a cell phone.
  • Optional ISO-H switchable controls with EH Joystick Performance Package allows operators to easily select the pattern they prefer.
  • Differential steering allows the operator to maintain speed and traction when pushing through a turn.

Increase productivity with EH controls

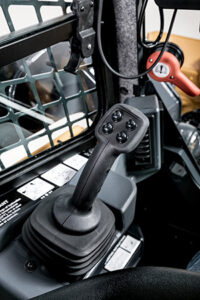

John Deere 317G Compact Track Loader ControlsElectrohydraulic (EH) controls offer increased functionality to allow operators to customize machine operations based on preference. The EH controls also require less operator effort and are not as fatiguing over longer periods of operation compared to manual linkages. With fewer physical components and maintenance requirements, EH control machines provide operators with increased productivity across a variety of job applications.

  • EH tracking is adjusted electronically from the monitor and can be tuned while machine is in operation.
  • Joysticks provide low effort fingertip operations and can be modified for each control style or application.
  • Anti-stall engine software prevents operator from unintentionally stalling the engine under heavy loads.
  • True Auto-Idle automatically idles engine when static for 5 seconds to save on fuel and component wear.
  • EH machines offer differential steering, an exclusive John Deere feature that speeds up the outside turning of tires/tracks for faster jobsite maneuvering.
  • EH control transition unlocks design improvements to reduce cab noise, significantly lower vibration, and offer better cab sealing, pressurization, and HVAC performance.

Maneuverability of small frame machines allows for quality performance in tight spaces

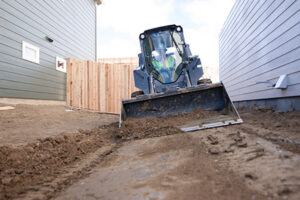

John Deere 317G Compact Track Loader FrameSmall frame G-Series machines accomplish heavy work in smaller spaces without sacrificing performance.

  • Multiple tire and track options enable G-Series machines to slim down and fit through narrow openings.
  • 316GR and 318G have a width below 63 inches, while the 317G equipped with a standard 12.6-inch track has a width just over 65 inches.
  • 317G equipped with optional 15.8-inch tracks has a ground pressure of 4.5 psi that enables work in soft underfoot conditions.
  • Two-pin attachment on the 316GR radial lift means fewer pivot points and less side-to-side movement.
  • Clear sightline to the cutting edge and bucket corners instills confidence when working in close quarters.

Added mobility features allow for easier transport on and between job sites

John Deere 317G Compact Track Loader MobilityThe size and design of small frame G-Series machines makes them easy to transport which provides owners and operators with a machine containing many features of larger machines, but with a more compact footprint.

  • Integrated and easily accessible tie-downs in the front and rear of machines ensure safe and secure transport between job sites and allow for faster securing without the need to crawl under or over the machine.
  • Operating weight between 6,542 and 8,423 pounds enables lightweight trailer transport behind a standard pickup truck.
  • Two-speed powertrain option on the 316GR and 318G delivers travel speeds up to 10.1 MPH, allowing operators to move from one side of the job site to the other much faster.

Ease of serviceability allows you to spend more time completing the tasks at hand

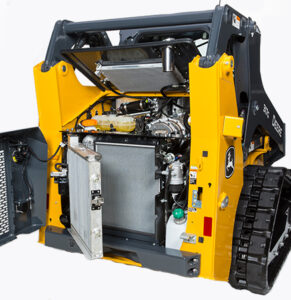

John Deere 317G Compact Track Loader MaintenanceEnhanced serviceability features and ease of access to daily and preventative maintenance points ensures that these tasks do not significantly cut into working hours.

  • Swing-out rear door enables easy access to daily service checkpoints and cooling system.
  • The hood tilts up for ground level access to the dipstick, fuel and fluid filter necks, filters, and see-through reservoirs.
  • A single person can lock the boom and swing the operator’s station up in less than two minutes for easy drivetrain reach.
  • Redesigned Quik-Tatch™ system optimized for effortless reach to grease zerks.
  • Optional JDLink™ provides machine data and health alerts to help decrease costly downtime.

Excellent visibility for increased situational and jobsite awareness

John Deere 317G Compact Track Loader VisibilityEnhanced visibility features increase jobsite awareness and allow operators to be as precise and productive as possible.

  • Optional deluxe lighting package with LED lamps and side lights provides increased visibility early in the morning or at night over the standard halogen package.
  • Clear sight from the seat to the tires when boom arms are raised, and great visibility to the cutting edges and Quik-Tatch™ lock indicators when boom is lowered.
  • Rear view camera, low-sloped hood, and a high cross-tube on the upper linkage result in unmatched rear visibility.
  • Removable glass windows from inside the cab ensure that windows can be easily and adequately cleaned to improve visibility.

Description

Lift Geometry: Vertical


Driveline

Engine Manufacturer: Yanmar

Engine Model: 4TNV86CHT

Emission Rating: Tier 4/Stage IV

Aspiration: Turbo

Displacement: 128 Cu In. (2.1 L)

Rated Speed: 2,600 rpm

Engine Output – Net: 61 hp (45.6 kW)

Engine Output – Gross: 65 hp (48.5 kW)

Torque: 153 Lb-Ft (207 Nm)

Track Shoe Width: 12.6 In. (320 mm)


Dimensions

Length – No Bucket: 103 In. (2,630 mm)

Length – Foundry Bucket: 127.6 In. (3,240 mm)

Width – No Bucket: 65.1 In. (1,650 mm)

Height – Top of Cab: 78.5 In. (1,990 mm)

Ground Clearance: 8.3 In. (210 mm)

Rear Departure Angle: 32.3°

Track Gauge: 52.5 In. (1,330 mm)

Height to Hinge Pin: 121 In. (3,070 mm)

Dump Angle: 42°

Dump Height – Maximum Foundry: 95.6 In. (2,430 mm)

Rollback – Ground Level: 30°


Capacities

Fuel Tank: 19 U.S. Gal. (71 L)


Performance

Rated Operating Capacity – Foundry: 2,125 Lb (965 kg)

Tipping Load – Foundry: 6,070 Lb (2,756 kg)

Ground Bearing Pressure – Foundry: 5.5 psi (38 kPa)

Speed – Maximum: 7 MPH (11.3 kph)

Breakout – Lift Foundry: 5,250 Lbf (23.3 kN)

Breakout – Bucket Foundry: 6,000 Lbf (26.6 kN)

Hydraulic Power: 33.1 hp (24.7 kW)

Pump Flow: 17 U.S. Gal./Min. (63 L/Min.)

System Pressure: 3,450 psi (237.9 Bar)


Weights

Operating Weight – Foundry: 8,423 Lb (3,824 kg)
