- Rated Operating Capacity: 1221 kg (2,690 lb.)
- Gross Horsepower: 55.0 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 3496 kg (7,700 lb.)

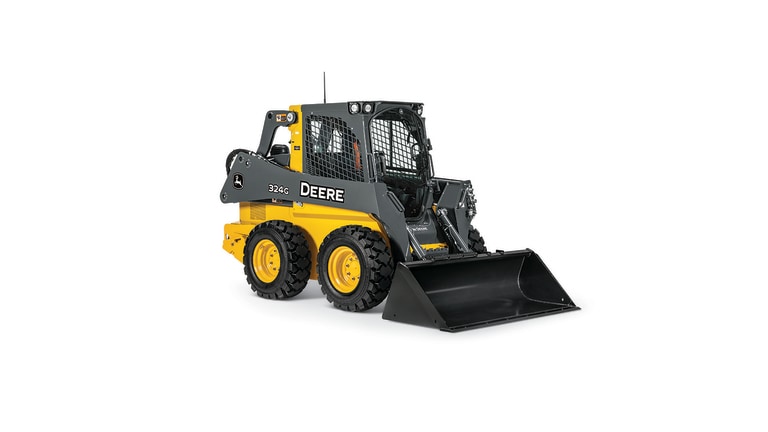

John Deere 324G Skid Steer
Images may depict options and attachments not included in base price.
Get More Information
Provide some information and our team will follow up with you.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications |
John Deere 324G Skid Steer |
DESCRIPTION
| Lift Geometry | Vertical | |||
|---|---|---|---|---|
| Fleet Management | Yes | |||
| Precision Guidance | No | |||
| Proximity Guidance | No |
DRIVELINE
| Engine Manufacturer | Yanmar | |||
|---|---|---|---|---|
| Engine Model | 4TNV98CT | |||
| Emission Rating | Tier 4 | |||
| Aspiration | Turbo | |||
| Displacement, ltr (Inches³) | 3.3 (203) | |||
| Rated Engine Speed, rpm | 2500 | |||
| SAE Net Power, kW (hp) | 52.5 (70) | |||
| SAE Gross Power, kW (hp) | 54.8 (74) | |||
| Max. Gross Torque, Nm (lbf / ft) | 280 (207) | |||
| Drive Chain Rating [ANSI] | 80 – HD | |||
| Tire size – Standard | 12 x 16.5 – 12PR SKS |
DIMENSIONS
| Length – No Bucket, mm (inches) | 2850 (112.3) | |||
|---|---|---|---|---|
| Length – With Bucket, mm (inches) | 3460 (136.3) | |||
| Width – No Bucket, mm (inches) | 1700 (67) | |||
| Overall Height, mm (inches) | 2060 (81.1) | |||
| Ground Clearance, mm (inches) | 240 (9.3) | |||
| Wheelbase, mm (inches) | 1120 (44.2) | |||
| Rear Departure Angle, ° | 28 | |||
| Height to Hinge Pin, mm (inches) | 3200 (126) | |||
| Dump Angle, ° | 41 | |||
| Dump Height – Maximum, mm (inches) | 2590 (102.1) | |||
| Reach – Max Dump Height, mm (inches) | 760 (29.9) | |||
| Rollback – Ground Level, ° | 34 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 79 (21) |
|---|
PERFORMANCE
| Rated Operating Capacity – Optional Counterweight, kg (lbs) | 1294 (2850) | |||
|---|---|---|---|---|
| Rated Operating Capacity, kg (lbs) | 1221 (2690) | |||
| Tipping Capacity (SAE), kg (lbs) | 2443 (5380) | |||
| Axle Torque – Maximum, Nm (lbf / ft) | 6771 (4994) | |||
| Speed – Maximum, kph (mph) | 11.1 (6.9) | |||
| Speed – Maximum Option, kph (mph) | 17.9 (11.1) | |||
| Breakout – Lift, kN (lbf) | 23.3 (5250) | |||
| Breakout – Bucket, kN (lbf) | 38.9 (8750) | |||
| Hydraulic Power, kW (hp) | 31.009 (41.5) | |||
| Hydraulic Power – Option, kW (hp) | 47.103 (63.1) | |||
| Pump Output, lt/min (gallons (US) / min) | 79 (21) | |||
| Pump Flow – Option, lt/min (gallons (US) / min) | 120 (32) | |||
| System Pressure, bar (PSI) | 237.87 (3450) |
WEIGHTS
| Operating Weight, kg (lbs) | 3496 (7700) |
|---|
