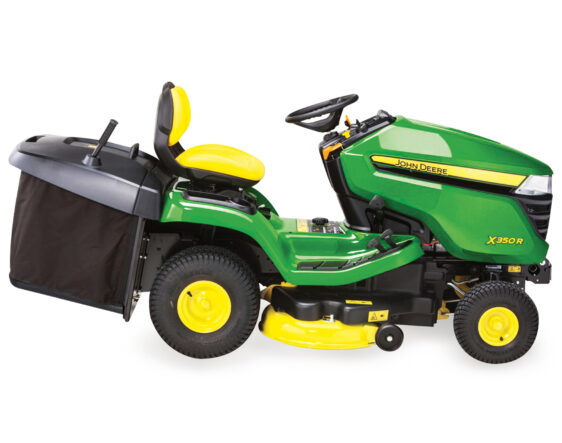

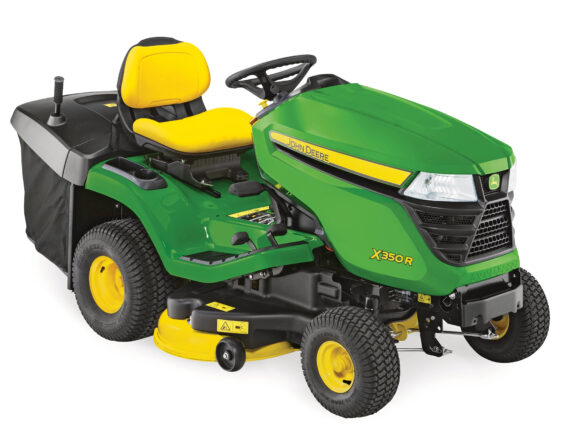

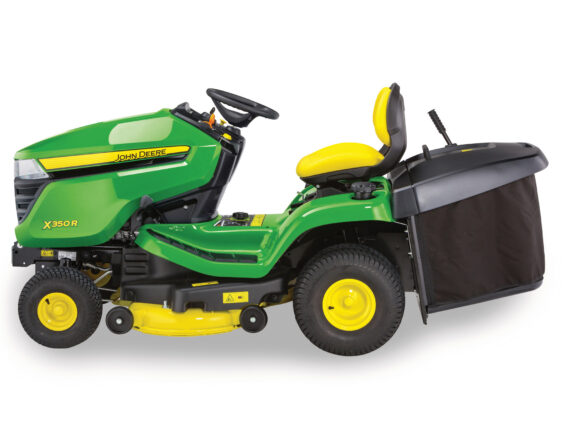

John Deere X350R Lawn Tractor, 42-in. Deck

$5,999.00

Gear Up for Fall Sales Event: 1.9% APR Financing for 36 Months!

Images may depict options and attachments not included in base price. Price shown does not include applicable taxes, setup, freight, and delivery fees. Offers end October 25, 2024.

Apply for Financing

Get More Information

Get More Information

Provide some information and our team will follow up with you.

Order Online

Risk Free Guarantee

Risk Free GuaranteeWe guarantee you will be 100% satisfied with your purchase or we will refund or exchange it for free.

Pricing does not include applicable freight, setup, taxes, delivery, and other fees.

Performance meets power.

Get a beautiful cut in a matter of minutes with the John Deere X350R Lawn Tractor. With the comfortable 18-inch cut-and-sewn standard seat* and mower deck options that cut clean, even passes at even faster speeds, it’s our riding mower lineup workhorse that you’ll love to saddle up. Tough enough to handle any job on your to-do list, you’ll get a quality cut all year round and a range of attachments to do, well, just about everything else there is to do in your yard.

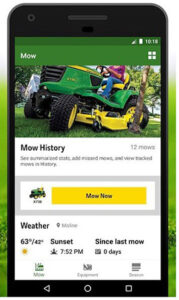

There are millions of ways to make the most of your mow and if you don’t know where to start, the X300 Select Series Lawn Tractor is sure to steer you in the right direction. With its exclusive optional one-touch MulchControl™ technology, three different Accel Deep™ Mower Deck sizes to fit any size property, and the versatility to be useful in every season, making the most of your mow has never been easier. It’s time to take the hard work out of lawn work. And you’ve come to the right place to do just that.

Contact us today for more information on the John Deere X350R Lawn Tractor, and see why Van Wall has been proudly providing the Midwest with quality lawn & garden tractors for over 70 years!

  • 21.5 hp (16.0 kW) iTorque™ Power System
  • 42-Inch Edge™ Rear-Discharge Deck
  • Large Capacity Rear Hopper is Easily Emptied from Operator Seat
  • 4-Year/300-Hour Bumper-to-Bumper Warranty

*Available on select models.

Engine is smooth-running and reliable V-Twin air-cooled design

John Deere X350R Lawn Tractor EngineThe tractor is powered by a John Deere iTorque™ Power System, a combination of engine features and an exclusive hood design that provides superior lugging ability, even cooling, and durability.

A large, 44.3-cubic inch (726cc), 21.5-horsepower (16-kW) engine has plenty of power and torque for superior performance. The larger, more powerful engine also allows the engine in the rear-discharge tractor to be operated at a lower 3,100 RPM speed for quieter operation.

  • 21.5 horsepower (16.0 kW).
  • Large 44.3-cubic inch (726cc) displacement.
  • Cast iron cylinder liners.
  • Overhead valves.
  • Full-pressure lubrication.
  • Replaceable oil filter.
  • Dual-stage air cleaner.
  • Excellent power and performance.
  • Easy starts.
  • Smooth operation.

A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer.

  • 12-amp charging capacity.
  • Regulated to keep the battery at full charge without risk of overcharging.

Large, 3-inch (7.6-cm) diameter fuel tank filler opening makes adding fuel easy.

  • Located on the left fender.
  • Helps eliminate spillage.
  • 2 U.S. gallon (7.6 L) capacity.
  • A low fuel light is provided on the tractor dash to tell the operator when it is time to refuel.

42-Inch (107-cm) Rear-Discharge Rear-Collect Mower Deck cuts clean

John Deere X350R Lawn Tractor Mower DeckThe innovative design of the 42-inch (107-cm) Edge™ Rear-Discharge Mower Deck combines the best features for reliability and superior performance when mowing, collecting, and mulching grass and leaves.

  • The mower deck is stamped from 11-gauge, 0.12-inch (3-mm) steel to provide smooth contours for a quality appearance and excellent performance.
  • Easy to install or remove mulch plug is included as standard equipment.
    • The included AM147289 blades provide optimal collection/rear-discharge and good mulching results in many conditions. For optimal mulching, AM140332 mulching blades are available.
  • With no side-discharge chute, the mower can trim on either side for mowing efficiency and convenience.
    • A smaller storage area requirement is an additional benefit.
  • A standard V-belt and non-timed blade design gives superior reliability and trouble-free operation.
  • Offset mower blades permit blade overlap with the use of a standard V-belt drive.
    • The blades cut cleanly without contacting each other.
  • Cut height increments of 0.25-inch (0.64-cm) allow for operating the mower at the optimum cutting height.
  • An Exact Adjust deck-leveling system is provided to make keeping the deck properly adjusted easy.

The mower deck is contoured and free of obstructions to ensure optimum cutting and bagging performance.

  • Grass clippings flow smoothly around the deck and up the chute into the hopper.
  • Clipping buildup is minimized to ensure continued high performance and easy cleanup.
  • Special discharge blades (standard equipment) have a large wing to propel grass clippings up the chute and into the hopper.
  • Mower fills and packs the 8.5-bushel (300-L) hopper with a large volume of grass clippings and/or leaves.

Mulch plug easily installs in place of a hopper.

  • A mulch plug is included with the model year 2017 and later X350R Lawn Tractor as standard equipment (serial number 20,001-).
  • Mulch plug is ideal for times when collecting grass clippings and leaves is not desired. The rear hopper can be easily removed, and the mulch plug can be installed.
  • Plug closes off opening on bottom of deck so material cannot enter the chute.
  • The included AM147289 blades provide optimal bagging and rear-discharge performance and good mulching results in many conditions.
    • For optimal mulching, AM140332 mulching blades are available.

A wash port is provided on the mower deck. It can be used to supply water to the underside of the deck so it can be easily cleaned after use.

  • The wash port is designed for a hose quick-connect fitting.
  • Connect the hose to the wash port and operate the mower to clean.
  • Using the wash port cleans bottom of deck and chute.
  • The wash port works best if used immediately after the mowing job is completed.
  • Use of the wash port prevents buildup of material from affecting performance the next time the mower is used.

Optional rear deflector (BM25065) easily installs in place of hopper.

  • No tools required for installation.
  • Deflects clippings in an even pattern behind the tractor.

Rear hopper has large capacity and is easy to empty

John Deere X350R Lawn Tractor HopperThe innovative design of the rear hopper sets a high standard for collecting systems.

  • Hopper is constructed of durable fabric for flexibility where needed.

The rear hopper is shipped in the returnable shipping crate with the tractor.

  • Minimizes shipping cost.
  • No extra carton material of which to dispose.

The hopper is made of durable materials and sealed to keep dust away from the operator.


4-year or 300-hour bumper-to-bumper warranty is standard

An exclusive 4-year or 300-hour (whichever comes first) single-source, bumper-to-bumper warranty* is standard for all John Deere X300 Select Series Tractors.

  • The warranty is hassle free, with one company handling all the paperwork.
  • Premium features of the X300 Select Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

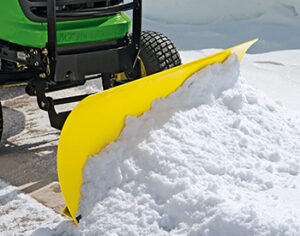

Snow removal is a strength of lawn tractors

John Deere X350R Lawn Tractor Snow RemovalAn advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire chain attachments add comfort and performance.

Equipment available for snow removal includes:

  • 44-Inch (112-cm) Snow Blower
  • 44-Inch (112-cm) Front Blade
  • 48-Inch (122-cm) Front Blade (X394 Tractor Only)
  • Tire Chains or TerraGrip Traction Belts
  • Weather Enclosure (Not Available on X350R Tractor)
  • Weights

Steering is low-effort sector and pinion system

John Deere X350R Lawn Tractor SteeringA heavy-duty sector and pinion steering system with quality bearings provides easy and precise control for the life of the tractor.

  • Tight turning radius of 16.5 inches (42 cm) provides good maneuverability.
  • Easy steering promotes mowing efficiency and operator comfort.

Easy steering is important to give the operator an enjoyable mowing experience.

  • Large, 14-inch (36-cm) diameter steering wheel gives good leverage for easy turns.
  • Larger sector gear gives improved (increased) steering ratio.
    • Higher steering ratio results in less effort to turn the wheel.
  • Ball joints on both ends of the steering tie rod and drag link maintain accurate steering longer.
  • Long steering drag link improves mechanical advantage of the steering system through the full range of motion.
  • Sector gear pivots on a shaft rather than a bushing.
    • This ensures proper gear mesh and eliminates binding to result in easier steering.
  • Greaseable font steering spindles improves wear over time.

Integrated hydrostatic transaxle is efficient

John Deere X350R Lawn Tractor TransmissionThe Tuff Torq® hydrostatic transaxle encloses the hydrostatic pump and motor rotator groups in the same housing with the differential and axle housings.

  • This very efficient design reduces the number of sealing surfaces and minimizes potential for leakage.
  • The transaxle is essentially the same as the one used in the X350 Tractor; however, it is reversed and the drive linkage is unique, to work with the rear-discharge system.

When combined with the foot controls, the hydrostatic transmission functions similarly to an automatic transmission in an automobile, so the term automatic is often used to describe it.

  • Use of the latest valve designs has significantly reduced the sound level.
  • Large pump and motor rotating groups ensure efficient operation and long life.

When it’s inconvenient to start the tractor, a freewheeling valve releases the transmission so the tractor can be pushed a short distance. The freewheeling valve control is located under the hopper near the hitch.

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Manufacturing Co., Ltd.


Controls and display functions are easy to identify and convenient to use

John Deere X350R Lawn Tractor ControlsThe contoured dash has clean, attractive styling and ergonomic controls for easy use.

  • Controls are color-coded and labeled with English words for easy identification by the operator.
  • Controls are logically placed and easy to reach.
  • The power take-off (PTO) switch allows the operator to get fingers underneath it, like a T-handle, to pull up for easy activation.
  • The reverse implement option (RIO) switch is a yellow button.
  • The latch control on foot-lift models and hydraulic lift control on power-lift models and the park brake latch are pivot levers for low effort.
  • Cruise control activation is handled by an automotive-style button.
  • Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
    • The choke lever is spring-loaded to eliminate the chance the tractor will be unintentionally operated with the choke partially closed.

Display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working.

  • Display features dark-cockpit design to minimize operator distractions.
  • Display is backlit for night visibility.
    • Night visibility is especially useful with snow blower use.
  • When the hopper is full, the hopper full light comes on and a buzzer sounds. The operator needs to manually shut off the PTO.
  • Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
  • Low fuel light provides the operator with a noticeable warning when low on fuel.
  • A tachometer graphically displays engine speed.
    • Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
  • An indicator tells the operator when the PTO is operating.
  • Bright caution and stop lights capture the operator’s attention when important information is on the instrument cluster.
    • Damage can be prevented and repair costs can be reduced by addressing problems early.
  • Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
    • The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
  • Operators are advised if battery voltage is low, normal, or excessive.
  • The service indicator light illuminates to indicate a diagnostic error code is stored.
    • On-board diagnostics provide trouble codes for use by trained technicians.
    • For example, a technician can test switch functionality and circuit continuity without tools.

Twin Touch™ foot pedals control the speed and direction of travel.

  • Automotive-type accelerator control ensures easy operation.
  • Operator can change direction without lifting foot off the platform.
  • Large pedal surface gives superior operator comfort.

Cruise control is standard equipment.

  • To engage, push the cruise control button and hold until the foot is removed from the forward pedal.
  • For emergency stop, the cruise control can be released by pushing on the brake pedal or the forward pedal.

Rotary dial knob makes adjusting mower cut height quick and easy.

  • Provides mower cut heights in 0.25-inch (6.4-cm) increments from 1 inch (2.5 cm) to 3.5 inches (8.9 cm).
  • Mower deck returns to same preset height each time it is lowered.

Storage for the onboard deck-leveling gauge and the Exact Adjust tool is provided in the storage tray under the tractor’s seat.

  • Exact Adjust ports allow for easy and accurate leveling of the mower deck for optimum mowing performance.

Pushing with the foot to raise the mower or implement is less strenuous for many operators.

  • The easy-to-use raised position lock operates similarly to the park brake lock.
  • The foot pedal is out of the way and not likely to catch on bushes and tree limbs when mowing.
  • The mower deck returns to the same preset height each time it is lowered.
  • A spring is provided to minimize lift effort.
    • An optional supplemental lift-assist spring kit (BM24810) is required for snow blower use on the X350R Tractor.
  • The mower will not be inadvertently locked in the raised position when mowing through ditches.
  • When installing or removing a mower or front equipment raised by the foot-lift system, spring tension may be removed from the connection points by pulling rearward on the lift pedal and raising the lift latch to hold the pedal in the rearward position.

Depressing the brake pedal applies internal wet disk brakes, which provide better reliability and longer life than external brakes, for safe stopping.

Parking brake control is conveniently located for easy access. It holds the brake pedal securely in the locked position.

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch. The PTO clutch is designed to operate through many on/off cycles.

The Reverse Implement Option (RIO) allows the PTO to be operated while moving the tractor in reverse.

  • CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward, carefully check the area around the machine. Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
  • To use RIO:
    1. Stop forward travel.
    2. Look behind the machine to be sure there are no bystanders.
    3. Push and hold in the RIO switch while depressing the reverse pedal slightly. If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Begin again with step 2.
    4. Release the RIO switch and reposition the machine as the machine begins to move rearward.
    5. Resume forward travel. The mower or other attachment should continue operating.
    6. Repeat procedure to position the machine again.

A switch senses if the hopper is installed. If the hopper is not installed and the PTO switch is actuated, the PTO will not operate.

A brake interlock switch is provided so the tractor does not start unless the brake is depressed or the parking brake set.

A tractor seat switch turns off the PTO if the operator leaves the tractor seat. It also shuts down the engine if the park brake is not set and the operator leaves the seat.

Either the operator needs to be in the seat or the hopper or deflector needs to be installed for the engine to run.


Frame is reliable heavy-duty welded steel

John Deere X350R Lawn Tractor FrameThe frame is made of heavy formed and welded steel, reinforced in critical areas for even greater strength.

The steel front side of the hopper is bolted to the rear of the tractor frame.

  • Reinforces the frame and provides a solid support for the hopper.
  • Frame formed from 12-gauge, 0.105-inch (2.66-mm) thick material.
  • Standard front bumper formed from 9-gauge, 0.15-inch (3.8-mm) steel to complete the frame assembly.
    • An optional front weight bracket/bumper is available for adding Quik-Tatch weights.

A standard rear hitch is included for pulling tow-behind equipment. Simply lift off the hopper, and the hitch is ready to use.

Front axle is made of nodular cast iron.

  • Cast iron front axle is strong and shock resistant.
  • Cast iron will not yield under heavy loads or impact.

Front steering spindle diameter is 0.75 inches (19 mm) for strength and long life.

  • Have strength to handle heavy implements.
  • Provide long life at bearing surfaces.
  • Use sealed precision bearings in front wheels.

Modern styling with functional design enhances appearance and performance

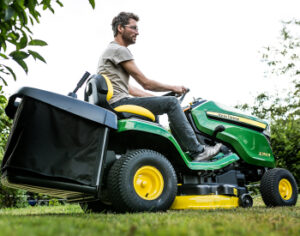

John Deere X350R Lawn Tractor StylingSmooth, rounded contours present a modern, styled appearance.

  • Hood styling incorporates efficient full-length air intake louvers on each side, rather than on the top.
    • Cooler engine operation.
    • Lower operator station sound levels.
  • Hot air is vented out the front grille, away from the operator.
  • The fully enclosed hood is made of molded-in color material.
    • Reduces sound.
    • Will not rust or dent.
  • Distinctive grille and large, one-piece fender deck complete the styling package.

Headlights are standard equipment on all models.

  • Two 27-W bulbs provide excellent lighting for good visibility during evening operation.
  • A headlight position on the ignition switch makes it easy to operate the headlights.
  • The headlights are designed to provide an optimum lighting pattern for mowing and snow removal.

Operator station is comfortable and convenient

John Deere X350R Lawn Tractor Operator StationThe operator station is designed for operator comfort and ease of using controls.

  • A large, 14-inch (36-cm) diameter steering wheel is comfortable to use and minimizes steering effort.
  • Full-length foot mats provide comfort for the operator and protect the footrest area.

An open-back, 15-inch (38-cm), high-back seat provides a comfortable, smooth ride and good support for the operator.

  • Seat travel of 6.6 inches (17 cm) with 15 positions allows the operator to be seated comfortably and easily operate the controls.
  • Seat can be easily adjusted fore and aft by the operator while sitting on the seat.
  • Open-back design allows air circulation to keep the operator’s back cool and dry for a more comfortable ride.
  • Grasp at the top of the seat is conveniently located for use when tilting the seat up to protect it from the weather.

The seat suspension is adjustable, without tools, for the weight of the operator.

  • Springs are adjustable fore and aft to any of three positions.
    • No tools required.
    • Allows fine-tuning of the suspension for the operator’s weight.
    • Back position for more support for heavier operators.
  • Tool tray is designed into the seat base.
    • Can be used to store gloves, small tools, etc.
    • Provides storage location for Exact Adjust tool and deck-leveling gauge.

A cup holder and covered toolbox are located on the fender for operator convenience.

  • The cup holder holds a variety of container sizes.
  • Toolbox provides convenient storage.
    • Toolbox cover snaps closed to provide protection for loose tools, cell phones, etc.
  • Cup holder and toolbox are constructed of durable acrylonitrile butadiene styrene (ABS) plastic.

A removable plug on the console, in front of the operator, provides a convenient location for the optional 12-V outlet and makes installation easy.

  • Convenient for plugging in cell phone charger and other electric devices.
    • Can be used to operate electric rear equipment, such as a sprayer or spreader.

A mid-vehicle, 12-V fast connector, located under the tractor’s fuse box, is included as standard equipment to reduce initial installation time for some attachments that operate on 12-V power from the tractor.

  • The four-cavity connector includes battery, ground, and key switch terminals and is turned on and off with the ignition switch.

Serviceability convenience is built in

John Deere X350R Lawn Tractor MaintenanceThe one-piece hood opens easily to permit checking and servicing the engine.

  • Important service points are located within easy reach.
  • A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
  • The high-quality engine used in the X350R does not require an 8-hour oil and filter change because improvements in the manufacturing process and quality of parts, components, and oils have eliminated the need for the short interval oil change requirement.

The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.

Hopper latch is easily adjustable for operator preference and conditions.

  • Spring can be located in any of three holes.
  • More latching effort is required for hilly or rough operating conditions.

The hopper is easily removed by using the rear handle to raise the back end of the hopper 25°, or about 5 inches (13 cm), and then using both handles to lift the hopper vertically out of the notches.

  • No tools are required.
  • There is nothing to disconnect.

The chute can be easily pulled out and removed.

  • Chute must be at least partially pulled out before removing the mower deck.
  • Removing the chute makes cleaning it easy.

A mower deck must be level side-to-side and properly adjusted front-to-rear to give the best cutting performance. A removable onboard deck-leveling gauge and a hex-key tool are provided to make adjustment easy. They are securely stored under the tractor seat.

Exact Adjust leveling ports are provided on each side of the operator platform above the mower-level adjusting bolts. With the hex-shaped tool, they provide convenient access to allow quick and easy adjustment of the mower for the best quality of cut. The Exact Adjust feature is standard on all X300 and X500 Select Series Tractors.

  • There is no need to reach under the fender deck while making the mower-level adjustment.
  • Onboard deck-leveling gauge, Exact Adjust ports, and the hex tool work together.
    • Level the mower deck side-to-side.
    • Set the correct amount of rake (front-to-back deck orientation).
    • Calibrate the cutting height to the cut height adjusting knob setting.
  • Exact Adjust simplifies leveling the mower deck if equipped with a Power Flow™ blower.
    • To give the best cut, mower level should be adjusted if alternately mowing with and without blower installed. The Exact Adjust feature makes this easy.
  • Consult the operator’s manual for the correct adjusting procedure for each tractor model. Basic adjusting steps to properly level the mower deck include:
    • Park the tractor on a level surface.
    • Inflate tires to the correct pressure.
    • Consult the label for the cutting height knob that is located on the console of the machine. This label shows deck-leveling position and location of deck-leveling adjustment points.
    • Set mower cutting height knob to the correct deck-leveling position.
    • Adjust mower wheels as necessary so they do not contact the ground surface.
    • Remove the onboard deck-leveling gauge that is located under the seat.
    • Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim at the designated adjustment points. The location of the adjustment points varies slightly between decks.
      • Left and right rear adjustment points are under the deck rim near the rear mower wheels, if equipped.
    • Adjust mower deck front-to-back level, if necessary.
      • Loosen rear nuts equally on each side of front lift rod.
      • Turn front nut equally on each side clockwise to raise front of mower or counterclockwise to lower it until gauge just slips under the front adjustment point.
      • Tighten rear nuts after adjustment is complete.
    • Return the gauge to its storage position.

NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key (part number M162737). The rounded end allows for some misalignment with the bolt as the deck is adjusted.


Help maintain your mower and lawn with the MowerPlus™ app and connector

John Deere X350R Lawn Tractor MowerPlusKeep a mower running its best and know how it mows with the John Deere MowerPlus™ app. Simply scan the mower’s barcode to get custom information about the mower.

  • Engine hours, fuel level, and battery health (as compatible).
  • Mowing history with time, distance, area, and speed.
  • Current day and five-day weather forecast based on location.
  • Walk-through setup guides.
  • Expert mowing tips.
  • Useful attachments for future purchase.
  • Periodic maintenance reminders.
  • Safety instructions.

To download the free MowerPlus™ app, visit the Apple® App Store® or Google Play™ store.

Three MowerPlus™ connectors are available to transmit vehicle information to the MowerPlus™ app.

  • BUC10510 MowerPlus™ Hour Meter Connector is for use with:
    • Model year 2003 to 2020 100 Series Tractors, including all models with an E, D, LA, or L prefix.
    • Model year 2015 to 2020 S240 Tractors (serial number -880,000).
    • S100, S110, S140, and S220 Tractors.
  • BUC10929 MowerPlus™ Deluxe Smart Connector is for use with:
    • All S120, S130, S160, S170, and S180 Tractors.
    • Model year 2021 and newer S240 Tractors (serial number 880,001-).
    • Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R zero-turn mowers (serial number 010,001-).
  • BUC10537 MowerPlus™ Smart Connector is for use with:
    • Model year 2016 and newer X300 and X500 Select Series Tractors.

All the MowerPlus™ connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus™ Smart Connector and MowerPlus™ Deluxe Smart Connector also transmit the fuel level.

MowerPlus™ connectors require the MowerPlus™ app on a mobile device to use. The John Deere MowerPlus™ app and operating system requirements can be found in the mobile device’s app store. The MowerPlus™ app is only available in the English language, and it is not available in all countries. BUC10510 MowerPlus™ Hour Meter Connector requires iOS® version 10 or higher and is not compatible with Android™ operating systems.

Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google, LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple, Inc.

Key Specs

Engine Power: 21.5 hp (16.0 kW)

Oil Change: No-Tools Oil Drain with Replaceable Filter

Engine Manufacturer/Model: FR651V

Transaxle Type: K46 Hydrostatic Integrated with Transaxle

Transaxle Control: Twin Touch™ Pedals

Rear Tires: 20×10-8

Lift System Type: Foot Pedal with Non-Adjustable Spring Assist, Optional Adjustable Spring Assist Kit Available

Cutting Width: 42 In. (107 cm)

U.S. Warranty: 4-Year/300-Hour Bumper-to-Bumper*

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.


Engine

Power: 21.5 hp (16.0 kW)

Displacement: 44.3 Cu In. (726cc)

Manufacturer/Model: FR651V

Type: Overhead Valve, Full-Pressure Lube, Oil Filter

Cylinders: V-Twin, Cast Iron Liners

Governor: Mechanical

Choke/Speed Control: Separate Levers, Automatic Choke Return

Cooling Method: Air

Air Cleaner: Dry, Replaceable

Oil Change: No-Tools Oil Drain with Replaceable Filter


Fuel System

Type: Gasoline

Fuel Delivery: Pulse Pump, Carburetor

Fuel Gauge: Low Fuel Indicator

Fuel Tank Location: Rear

Fuel Fill Opening: Left Fender, 3 In. (7.6 cm)

Fuel Tank Capacity: 2 U.S. Gal. (7.6 L)


Electrical System

Battery: 12 V, 340 CCA

Charging System: Flywheel Alternator, Regulated, 12 Amp

Engine Starter: Bendix

Hour Meter: Yes

Headlights: Two Standard, Incandescent, 27 W

Taillights or Reflector: No

Backup Lights: No

Rear Work Lights: No

12-V Outlet: Optional


Transaxle

Type: K46 Hydrostatic Integrated with Transaxle

Control: Twin Touch™ Pedals

Cruise Control: Yes, Button on Dash

Oil Cooler: Fins and Fan on Transaxle

Oil Filter: Internal, Not Replaceable

Differential Lock: No

Forward Speed: 0 – 5.3 MPH (0 – 8.5 km/h)

Reverse Speed: 0 – 4 MPH (0 – 6.4 km/h)

Brakes: Internal Wet Disc


Chassis

Frame: Welded Heavy-Duty

Primer/Paint: E-Coat/Powder

Weight Bracket: Optional Front

Receiver Hitch: No

Front Axle: Cast Iron Front Axle, Front Wheel Ball Bearings

Spindle Bushings: No

Front Tires: 15×6-6

Rear Tires: 20×10-8

Hood Material: Fully Enclosed, Molded-In Color Material

Fender Deck Material: Stamped Steel

Floor Mats: Sure-Grip Rubber

Storage: Yes, Under Seat and Covered Toolbox

Service Interval Decal: Yes

Fender Handles/Grips: No

Cup Holder: Yes

Equipment Mounting: Yes, Front

Maximum Towing Capacity: 600 Lb (272 kg)


Steering

Type: Manual, Sector and Pinion

Four-Wheel Steer: Not Available

Steering Wheel: Large, 14 In. (35.6 cm)

Tilt Steering Wheel: No

Turning Radius: 16.5 In. (42 cm)

Uncut Circle Radius:

  • Right: 23 In. (58.4 cm)
  • Left: 28 In. (71.1 cm)

Seat

Type: Open-Back Design with Grasp

Seat Back Height: 15 In. (38 cm)

Armrests: No

Fore-Aft Adjustment: While Seated – 6.6 In. (17 cm)

Seat Suspension: Tilt, Two Coil Springs, Three-Position No-Tools Adjustment for Operator Weight


Lift System

Type: Foot Pedal with Non-Adjustable Spring Assist, Optional Adjustable Spring Assist Kit Available

Hydraulic Outlets: No

Mower Cut Height: 11 Positions, 1 – 3.5 In. (2.5 – 9.5 cm)

Cut Height Increments: 0.25 In. (0.64 cm)

Preset Cut Height: Yes


Mower Deck

Type: Rear-Discharge, Rear-Collect, Mulch

Cutting Width: 42 In. (107 cm)

Construction: Stamped Steel Deck Shell

Mower Deck Material: 11-Gauge, 0.120 In. (3 mm)

Mower Wash Port: Yes

Mower Drive System: Electric Power Take-Off (PTO) Clutch, In-Line Belt

Mower Wheels: Three

Mower Wheel Adjustment: Four-Position, Tool Required

Mower Level Adjustment: Exact Adjust Ports and Onboard Deck-Leveling Gauge


Mower Attachability

Type: Slide Under Tractor

Front Draft Arms: Attached with Spring Pins at Two Points

Rear Draft Arms: Two Pins and Spring Clips

Mower Wheels Rotate: No

Drive System: Dual Belt


Safety

Meets ANSI Standard: Yes

Meets OPEI Standard: Yes

Backup Protection: Reverse Implement Option (RIO)

Safety Video: Yes


Dimensions

Height: 46.1 In. (1,171 mm)

Overall Length: 97.2 In. (2,468 mm)

Wheelbase: 50.2 In. (1,275 mm)

Width with Mower: 43.8 In. (1,112 mm)

Width without Mower: 37.9 In. (962 mm)

Weight: 646 Lb (293 kg)

Riding Lawn Tractors
