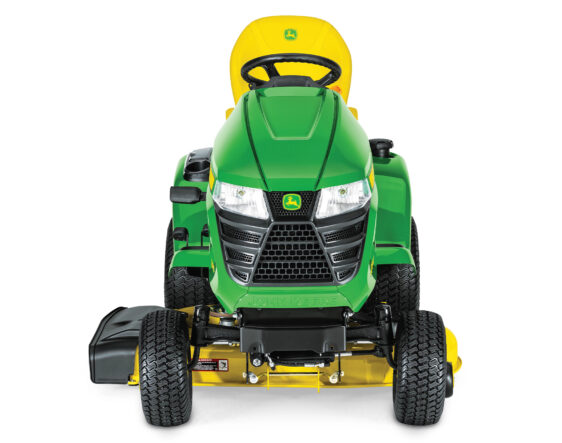

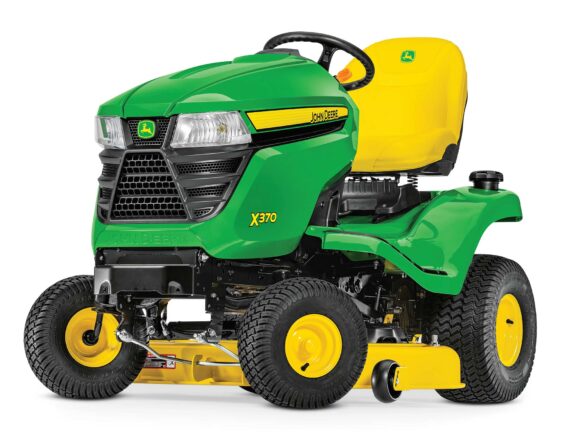

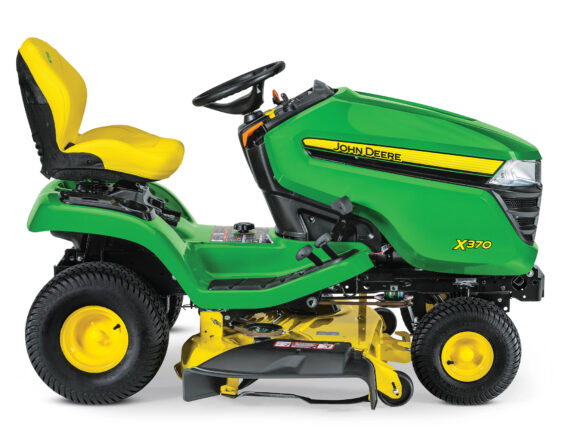

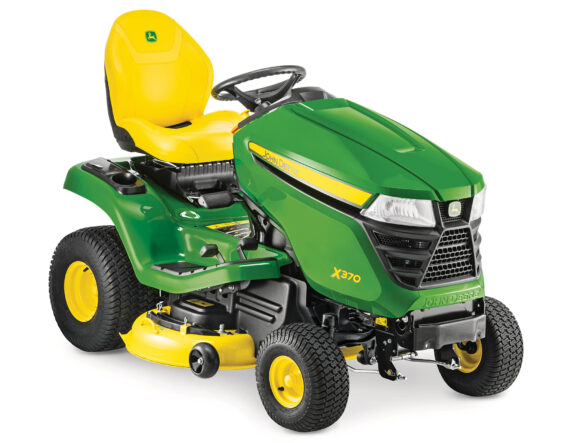

John Deere X370 Lawn Tractor, 42-in. Deck


Green Tag Sales Event: 1.9% APR Financing for 36 Months!

Images may depict options and attachments not included in base price. Price shown does not include applicable taxes, setup, freight, and delivery fees. Offers end July 31, 2024.

Apply for Financing

Get More Information

Get More Information

Provide some information and our team will follow up with you.

Order Online

Risk Free Guarantee

Risk Free GuaranteeWe guarantee you will be 100% satisfied with your purchase or we will refund or exchange it for free.

Pricing does not include applicable freight, setup, taxes, delivery, and other fees.

Performance meets power.

Get a beautiful cut in a matter of minutes with the John Deere X370 Lawn Tractor. With the comfortable 18-inch cut-and-sewn standard seat* and mower deck options that cut clean, even passes at even faster speeds, it’s our riding mower lineup workhorse that you’ll love to saddle up. Tough enough to handle any job on your to-do list, you’ll get a quality cut all year round and a range of attachments to do, well, just about everything else there is to do in your yard.

There are millions of ways to make the most of your mow and if you don’t know where to start, the X300 Select Series Lawn Tractor is sure to steer you in the right direction. With its exclusive optional one-touch MulchControl™ technology, three different Accel Deep™ Mower Deck sizes to fit any size property, and the versatility to be useful in every season, making the most of your mow has never been easier. It’s time to take the hard work out of lawn work. And you’ve come to the right place to do just that.

Contact us today for more information on the John Deere X370 Lawn Tractor, and see why Van Wall has been proudly providing the Midwest with quality lawn & garden tractors for over 70 years!

  • 21.5 hp (16.0 kW) iTorque™ Power System
  • 42-Inch Accel Deep™ Mower Deck, Compatible with Optional One-Touch MulchControl™ Kit
  • Power Two-Wheel Steer
  • 4-Year/300-Hour Bumper-to-Bumper Warranty

*Available on select models.

Engine is smooth-running and reliable V-twin air-cooled design

The tractor is powered by a John Deere iTorque™ Power System, a combination of engine features and an exclusive hood design that provides superior lugging ability, even cooling, and durability. Key engine features include:

  • 21.5 horsepower (16.0 kW).
  • Large 44.3 cubic inch (726 cc) displacement.
  • V-twin air-cooled design that provides smooth, quiet power.
  • Cast iron cylinder liners.
  • Overhead valves.
  • Full-pressure lubrication.
  • Replaceable oil filter.
  • Dual-stage air cleaner.
  • Excellent power and performance.
  • Easy starts.
  • Smooth operation.

A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer.

  • 12 amp charging capacity.
  • Regulated to keep the battery at full charge without risk of overcharging.

Large fuel tank and convenient fuel gauge minimize the number of stops for fuel and chance of running out of fuel.

  • Fuel tank has a large, 3.3 U.S. gallon (12.5 L) capacity for more hours of operation between refills.
  • Large, 3-inch (7.6-cm) diameter fuel tank filler opening makes adding fuel easy.
    • Located on the left fender.
    • Helps eliminate spillage.
  • Electronic fuel gauge on the dash display allows the operator to easily monitor the amount of fuel in the tank.

42-Inch (107-cm) Accel Deep™ (42A) Mower Deck cuts clean and is versatile

The 42-inch (107-cm) Accel Deep™ Mower Deck is a stamped steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass.

  • 4.97-inch (12.6-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance.
    • Optional lever-action or electric one-touch MulchControl™ system for superior mulching performance and versatility.
  • Stamped steel design eliminates sharp edges and corners where material can build up and diminish mowing performance.
  • Mower deck suspended from the vehicle for a smooth and level cut.
    • Adjustable mower wheels, positioned just above ground level, help reduce scalping.
  • 0.25-inch (6.4-mm) cut height increments allow the mower to be set at the desired cut height.
  • Compatible with efficient 7 bushel (247 L) two-bag cut-and-throw material collection system.
  • For use on X330, X350, X354, and X370 Tractors.

Deep mower deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut.

  • Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
    • Helps maintain excellent cut quality at faster mowing speeds.
  • Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
  • Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.
  • Exact Adjust deck-leveling system allows for easy and accurate leveling of the mower deck.

Large discharge opening is both high and wide to handle more material.

  • Gives a smooth, even discharge of clippings at all mowing speeds.
  • Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging.
  • Cut-and-throw chute has a large, optimized inlet which aids in collecting material by using airflow from the large deck opening.

The flat-top shape of the deck stamping is optimal for keeping itself and the operator clean.

  • There are few places to catch and hold material on top and underneath the deck.
    • Top of deck stays cleaner, reducing time and effort needed for cleaning and service.
    • Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings.
    • Less need to clean and remove buildup of material from underside of deck.
  • The depth of the Accel Deep™ Mower Deck minimizes the amount of material that escapes from the front of the deck.
    • Limited amount of material to drift onto the operator and mower deck.
    • Even flow of material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator.
    • Mulching prevents the discharge of material completely and MulchControl™ makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities.

  • The flat-top design reduces places for material to build up and makes material that does collect easy to remove.
  • A wash port is provided to make cleaning the underside of the mower deck easy, and includes a hose connector.

The 42A Mower Deck has strong spindle pockets to keep the blades aligned, even after years of tough service.

  • Ribs in the deck shell add strength where it is needed.
  • The 42A has a 16% heavier overall weight than the Edge™ Xtra 42-inch (107-cm) Mower Deck.

Mower wheels are double captured.

  • Provides greater strength and durability for longer, trouble-free life.
  • Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.

Low-tension belt-drive design reduces the side load on the engine lower bearing and mower deck bearings for longer life.

Rolled outer edge of the deck provides extra strength and protection.

Dual-stage E-coat and powder paint coatings provide extra protection from rust.

The 42A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another.

  • With an optional MulchControl™ system installed (along with the special mulching blades), changing from side discharging to mulching or vice versa is done with the simple flip of a lever or push of an electric switch.
  • The cut-and-throw rear bagger can be used with MulchControl™ by removing the rear MulchControl™ baffle before installing the bagger chute. The baffle is held in place with two carriage bolts. To return to mulching, the chute needs to be removed and the baffle replaced.
    • An optional 7 bushel (247 L) cut-and-throw rear bagger material collection system (MCS) is available for use with the 42-inch (107-cm) Accel Deep™ Mower Deck. It provides an efficient means of collecting grass clippings and leaves.
    • The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags.
    • High-lift bagging blades are included with the bagger chute. They provided optimum performance when bagging in difficult conditions, such as when grass is moist, dense, or long. High-lift bagging blades also work well when side discharging material.
  • Mulching blades are included with the optional MulchControl™ system. They can be used for mulching, side discharging, and bagging in most conditions.

4-Year or 300-Hour bumper-to-bumper warranty is standard

An exclusive 4-year or 300-hour (whichever comes first), single-source, bumper-to-bumper* warranty is standard for all John Deere X300 Series Tractors.

  • The warranty is hassle free, with one company handling all the paperwork.
  • Premium features of the X300 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at or for details.

Power steering and hydraulic lift enable easy operation

Hydraulic power steering is standard equipment.

  • Provides effortless, automotive-like control.
  • Reduces operator fatigue and increases productivity.
  • Enables a tight-turning radius for great maneuverability.
  • Adjustable tilt steering wheel for optimum operator comfort (X390 and X394 Tractor).

The hydraulic lift control lever is positioned on the dash near the steering wheel for quick, easy, and precise fingertip control of equipment. Implement float, which allows an implement to follow the ground contour, is built into the left linkage.

MulchControl™ system provides superior mulching performance and rapid conversion

The optional MulchControl™ system makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

  • Creates a beautiful looking lawn.
  • Smaller grass clippings disappear into the lawn canopy.
  • Reduces fertilizer needs.
  • Grass clippings are not blown onto the operator, driveways, or flower beds.
  • No need to dispose of bags of clippings.

MulchControl™ is an innovative, simple design that is easy to use and maintain.

  • The MulchControl™ system includes an adjustable MulchControl™ baffle near the discharge chute and fixed baffles to control the flow of material under the deck.
  • The MulchControl™ handle, or electric one-touch actuator, is on top of the mower deck and is used to open and close the MulchControl™ baffle.
  • When the MulchControl™ baffle is open, most of the material flows freely out the discharge deflector or into a material collection system.
  • When the MulchControl™ baffle is closed, material stays within the deck and gets chopped into mulch and deposited in the turf.

MulchControl™ is well-suited to the following mowing situations:

  • For operators who usually mulch, but side discharge when grass gets too long.
  • For operators who usually side discharge, but would like to close the chute to control clippings in some areas.
  • For operators who always mulch a main lawn, but often side discharge secondary lawns.
  • For operators who collect clippings but want to go farther before emptying the material collection system.

MulchControl™ puts the operator in control of the clippings. Electric one-touch MulchControl™ systems shift the MulchControl™ baffle using an electric actuator that is operated by a dash-mounted switch. Operators can convert between modes without interrupting the mowing process, making it possible to change between modes:

  • When approaching driveways or flower beds where clippings would be undesirable;
  • When a breeze blows clippings back onto the operator;
  • For side discharge mowing only the areas of the property where grass is too thick for mulching;
  • With 48A and 54A Mower Decks, for collecting only the areas of the property where grass is too tall or thick for mulching.

While in the side discharge mode, MulchControl™ still mulches about one-third of the material. Therefore, the side discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage.

  • When cutting strong southern grasses, such as Zoysia or Bermuda.
  • When cutting in wet, high growth conditions, such as those found in the Pacific Northwest United States.
  • When optimum bagging and lawn cleanup is desired.
  • 42A Mower Deck requires a MulchControl™ baffle be removed to install the bagger chute.

When bagging with MulchControl™ on a 48A or 54A Mower Deck, the MulchControl™ baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow™ blower runs without material when the baffle is closed.

When bagging with MulchControl™ on a 42A Mower Deck, the cut-and-throw rear bagger can be used with the MulchControl™ blades. However, the rear MulchControl™ baffle needs to be removed to install the bagger chute. The baffle is held in place with two carriage bolts. To return to mulching, the chute needs to be removed and the baffle replaced.

Each MulchControl™ system is an optional field-installed attachment and includes everything needed: baffles, mulch blades, a handle (lever-action attachments) or an actuator, wiring, and switches (electric one-touch attachments).

NOTE: Model year 2016 – 2017 X300 and X500 Series Tractors (X300 serial number 10001-50000 and X500 serial number 110001-130000) require replacing the tractor wiring harness and dash panel to use an electric MulchControl™ attachment.

Snow removal is a strength of lawn tractors

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance. Equipment available for snow removal includes:

  • 44-Inch (112-cm) Snow Blower
  • 44-Inch (112-cm) Front Blade
  • 48-Inch (122-cm) Front Blade (X394 Tractor Only)
  • Tire Chains or TerraGrip Traction Belts
  • Weather Enclosure (Available for All X300 Series, Except the X350R)
  • Weights

Integrated hydrostatic transaxle efficiently transmits power to wheels

The Tuff Torq® hydrostatic transaxle encloses the hydrostatic pump and motor rotator groups in the same housing with the differential and axle housings. This design is very efficient and reduces the number of sealing surfaces to minimize the potential for leakage.

Combined with the foot controls, the hydrostatic transmission functions similarly to that of an automatic transmission in an automobile, so the term automatic is often used to described it.

  • Use of the latest valve designs has significantly reduced the sound level.
  • Large pump and motor rotating groups ensure long life and efficient operation.

A freewheeling valve control is conveniently located near the tractor rear hitch plate for good visibility and easy operation.

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Manufacturing Co., Ltd.

Controls are convenient and easy to find

The contoured dash has clean, attractive styling and ergonomic controls for easy use.

  • Controls are color coded for easy identification by the operator.
  • Controls are logically placed and easy to reach.
  • The power take-off (PTO) switch allows the operator to get fingers underneath it, like a T-handle, to pull up for easy activation.
  • The reverse implement option (RIO) switch is a yellow button.
  • The hydraulic lift control and the park brake latch are pivot levers for low effort.
  • Cruise control activation is handled by an automotive-style button.
  • Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
    • The choke lever is spring loaded to eliminate the chance the tractor will be unintentionally operated with the choke partially closed.
  • Functional design of the throttle and choke controls provides good appearance and a comfortable feel.
  • Power steering takes the work out of turns.
  • Tilt steering wheel adjusts for operator comfort (X390, X394).

Instrument display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working.

  • Display features dark-cockpit design to minimize operator distractions.
  • Display is backlit for night visibility.
    • Night visibility is especially useful with snow blower use.
  • Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
  • Electronic fuel gauge provides real-time fuel level information.
  • A tachometer graphically displays engine speed.
    • Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
  • An indicator tells the operator when the PTO is operating.
  • Bright caution and stop lights capture the operator’s attention when important information is on the instrument cluster.
    • Damage can be prevented and repair costs can be reduced by addressing problems early.
  • Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
    • The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
  • Operators are advised if battery voltage is low, normal, or excessive.
  • The service indicator light illuminates to indicate a diagnostic error code is stored.
    • Onboard diagnostics provides trouble codes for use by trained technicians.
    • For example, a technician can test switch functionality and circuit continuity without tools.

Twin Touch™ foot pedals control the speed and direction of travel.

  • Automotive-type accelerator control ensures easy operation.
  • Operator can change direction without lifting foot off the platform.
  • Large pedal surface gives superior operator comfort.

Cruise control is standard equipment.

  • To engage, push the cruise control button and hold until the foot is removed from the forward pedal.
  • For emergency stop, the cruise control can be released by pushing on the brake pedal or the forward pedal.

A rotary dial knob makes adjusting the mower cut height quick and easy.

  • Provides mower cut heights in 0.25 inch (6.4 cm) increments from 1 inch (2.5 cm) to 4 inches (10.2 cm).
  • Returns the mower deck to the same preset cut height each time it is lowered.

Storage for the onboard deck-leveling gauge and the Exact Adjust tool is provided in the storage tray under the tractor’s seat.

  • Exact Adjust ports allow for easy and accurate leveling of the mower deck for optimum mowing performance.
  • Deck-leveling gauge is placed at the appropriate location under the left rear, right rear, and front of the mower deck as the cut height is adjusted using the Exact Adjust tool and front draft arm adjusting nuts.

Depressing the brake pedal applies internal wet-disk brakes (increased durability and longer life) for safe stopping.

A parking brake control is conveniently located for easy access; it holds the brake pedal securely in the locked position.

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch. The PTO clutch is designed to operate through many on/off cycles. The available Reverse Implement Option (RIO) allows for movement in reverse without disengaging the PTO.

  • CAUTION: Children or bystanders can be injured by rotating blades. Before traveling forward or rearward, carefully check the area around the machine and disengage the mower before backing up. Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
  • To use RIO, follow these steps:
    1. Stop forward travel.
    2. Look behind the machine to be sure there are no bystanders.
    3. Push and hold in the RIO switch while depressing the reverse pedal slightly. If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position, then start the engine and engage the mower or other attachment. Begin again with step 2.
    4. Release the RIO switch and reposition the machine as the machine begins to move rearward.
    5. Resume forward travel. The mower or other attachment should continue operating.
    6. Repeat procedure to position the machine again.

Frame is reliable heavy-duty welded steel

The frame is made of heavy formed and welded steel, reinforced in critical areas for even greater strength.

  • The frame is formed from 12-gauge, 0.105-inch (2.6-mm) thick material for long life.
  • Standard front bumper and hitch plate are formed from 9-gauge, 0.15-inch (3.8-mm) steel and complete the frame assembly.
  • Rear hitch plate can support two 42 pound (19 kg) Quik-Tatch weights.
    • Weight bracket is built into the frame of two-wheel steer models.
    • Four-wheel steer models require the optional weight bracket.

Front axle is made of nodular cast iron.

  • Cast iron front axle is strong and shock resistant.
  • Cast iron will not yield under heavy loads or impact.

A replaceable bushing is used at axle mounting.

  • The bushing provides excellent wear resistance.
  • Grease fittings at each spindle are easy to service.

Front steering spindle diameter is 0.75 inch (19 mm) for strength and long life.

  • Have strength to handle heavy implements.
  • Provide long life at bearing surfaces.
  • Use sealed precision bearings in front wheels.

A heavy-duty equipment mounting system is used.

  • Includes strong frame mounts with a combination of mounting holes in the tractor hitch plate that accept pins or shoulder bolts to support heavy rear-mounted equipment.
  • Easily attach optional equipment to the tractor.
  • Can bear the load of heavy rear-mounted equipment, such as material collection systems.

Modern styling with functional design enhances appearance and performance

Smooth, rounded contours present a modern, styled appearance.

  • Hood styling incorporates efficient full-length air intake louvers on each side, rather than on the top.
    • Cooler engine operation.
    • Lower operator station sound levels.
  • Hot air is vented out the front grille, away from the operator.
  • The fully enclosed hood is made of molded-in color material.
    • Reduces sound.
    • Will not rust or dent.
  • Distinctive grille and large, one-piece fender deck complete the styling package.

Headlights are standard equipment on all models.

  • Two 27-W bulbs provide excellent lighting for good visibility during evening operation.
  • A headlight position on the ignition switch makes it easy to operate the headlights.
  • The headlights are designed to provide an optimum lighting pattern for mowing and snow removal.

Operator station is comfortable and convenient

The operator station is designed for operator comfort and ease of using controls.

  • A large, 14-inch (36-cm) diameter steering wheel is comfortable to use and minimizes steering effort.
  • Full-length foot mats provide comfort for the operator and protect the footrest area.

An 18-inch (46-cm), high-back cut-and-sewn seat delivers a comfortable, smooth ride and excellent support for the operator.

  • A smoother, more comfortable ride results from the use of more foam than a form-in-place seat and more side-bolstering to stabilize the operator on uneven terrain.
  • Improved visual appeal is provided by the thicker cushion, additional bolstering in the seat and back, and an embroidered John Deere logo that makes this upscale seat look as good as it feels.
  • Long-term pliability and less chance of cracking are advantages of the cut-and-sewn process, which does not require heating during the manufacturing process and gives a more uniform vinyl thickness.
  • Additional operator support and comfort is available with optional armrest (BM23761).
  • Reduced cost of repair, should the seat cover be damaged, is available with a replaceable seat cover available from Parts.
  • Seat travel of 6.6 inches (17 cm) with 15 positions allows the operator to be seated comfortably and easily operate the controls. Seat can be easily adjusted fore and aft by the operator while sitting on the seat.

The seat suspension is adjustable, without tools, for the weight of the operator.

  • Springs are adjustable fore and aft to any of three positions.
    • No tools required.
    • Allows fine-tuning of the suspension for the operator’s weight.
    • Back position for more support for heavier operators.
  • Tool try is designed into the seat base.
    • Can be used to store gloves, small tools, etc.
    • Provides storage location for Exact Adjust tool and deck-leveling gauge.

A cup holder and toolbox are located on the fender for operator convenience.

  • The cup holder holds a variety of container sizes.
  • Toolbox provides convenient storage.
    • Toolbox cover snaps closed to provide protection for loose tools, cell phones, etc.
  • Cup holder and toolbox are constructed of durable acrylonitrile butadiene styrene (ABS) plastic.

A removable plug on the console, in front of the operator, provides a convenient location for the optional 12-V outlet and makes installation easy.

  • Convenient for plugging in cell phone charger and other electric devices.
  • Can be used to operate electric rear equipment, such as a sprayer or spreader.

A mid-vehicle, 12-V fast connector, located under the tractor’s fuse box, is included as standard equipment to reduce initial installation time for some attachments that operate on 12-V power from the tractor.

  • The four-cavity connector includes battery, ground, and key switch terminals and is turned on and off with the ignition switch.

Serviceability is convenient with easy-open hood

The one-piece hood opens easily to permit checking and servicing the engine.

  • Important service points are located within easy reach.
  • A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
  • The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.

John Deere riding lawn mowers are supported by owner information web pages that include links to:

  • Safety and How-To Videos
  • Operator’s Manuals
  • Parts Catalog
  • Maintenance Reminder Sheets
  • Attachments
  • Warranty Statements

To speed access to owner information web pages, a QR code is printed onto a PIN label located under the hood on trim side of the steering pedestal. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN which allows for additional customization of the owner information web page in the future.

A mower deck must be level side-to-side and properly adjusted front-to-rear to give the best cutting performance. A removable onboard deck-leveling gauge and a hex-key tool are provided to make adjustment easy. They are securely stored under the tractor seat.

Exact Adjust leveling ports are provided on each side of the operator platform above the mower level adjusting bolts. With the hex-shaped tool, they provide convenient access to allow quick and easy adjustment of the mower for the best quality of cut. The Exact Adjust feature is standard on all X300 and X500 Select Series Tractors.

  • There is no need to reach under the fender deck while making the mower level adjustment.
  • Onboard deck-leveling gauge, Exact Adjust ports, and the hex tool work together.
    • Level the mower deck side-to-side.
    • Set the correct amount of rake (front-to-back deck orientation).
    • Calibrate the cutting height to the cut height adjusting knob setting.
  • Exact Adjust simplifies leveling the mower deck if equipped with a Power Flow™ blower.
    • To give the best cut, mower level should be adjusted if alternately mowing with and without blower installed. The Exact Adjust feature makes this easy.

Consult the operator’s manual for the correct adjusting procedures for each tractor model. Basic adjusting steps to properly level the mower deck include:

  • Park the tractor on a level surface.
  • Inflate tires to the correct pressure.
  • Consult the label for the cutting height knob that is located on the console of the machine. This label shows deck-leveling position and location of deck-leveling adjustment points.
  • Set mower cutting height knob to the correct deck-leveling position.
  • Adjust mower wheels as necessary so they do not contact the ground surface.
  • Remove the onboard deck-leveling gauge that is located under the seat.
  • Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim at the designated adjustment points. The location of adjustment points varies slightly between decks.
    • Left and right rear adjustment points are under the deck rim near the rear mower wheels, if equipped.
  • Adjust mower deck front-to-back level, if necessary.
    • Loosen rear nuts equally on each side of front lift rod.
    • Turn front nut equally on each side clockwise to raise front of mower or counterclockwise to lower it until gauge just slips under the front adjustment point.
    • Tighten rear nuts after adjustment is complete.
  • Return the gauge to its storage position.

NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key (part number M162737). The rounded end allows for some misalignment with the bolt as the deck is adjusted.

Help maintain your mower and lawn with the MowerPlus™ app and connector

Keep a mower running its best and know how it mows with the John Deere MowerPlus™ app. Simply scan the mower’s barcode to get custom information about the mower.

  • Engine hours, fuel level, and battery health (as compatible).
  • Mowing history with time, distance, area, and speed.
  • Current day and five-day weather forecast based on location.
  • Walk-through setup guides.
  • Expert mowing tips.
  • Useful attachments for future purchase.
  • Periodic maintenance reminders.
  • Safety instructions.

To download the free MowerPlus™ app, visit the Apple® App Store® or Google Play™ store.

Three MowerPlus™ connectors are available to transmit vehicle information to the MowerPlus™ app.

  • BUC10510 MowerPlus™ Hour Meter Connector is for use with:
    • Model year 2003 to 2020 100 Series Tractors, including all models with an E, D, LA, or L prefix.
    • Model year 2015 to 2020 S240 Tractors (serial number -880000).
    • S100, S110, S140, and S220 Tractors.
  • BUC10929 MowerPlus™ Deluxe Smart Connector is for use with:
    • All S120, S130, S160, S170, and S180 Tractors.
    • Model year 2021 and newer S240 Tractors (serial number 880001-).
    • Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R (serial number 010001-).
  • BUC10537 MowerPlus™ Smart Connector is for use with:
    • Model year 2016 and newer X300 and X500 Select Series Tractors.

All the MowerPlus™ connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus™ Smart Connector and MowerPlus™ Deluxe Smart Connector also transmit the fuel level. MowerPlus™ connectors require the MowerPlus™ app on a mobile device to use. The John Deere MowerPlus™ app and operating system requirements can be found in the mobile device’s app store. The MowerPlus™ app is only available in the English language, and it is not available in all countries. BUC10510 MowerPlus™ Hour Meter Connector requires iOS® version 10 or higher and is not compatible with Android™ operating systems.

Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google, LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple, Inc.

Key Specs

Engine Power: 21.5 hp (16 kW)

Oil Change: No-Tools Oil Drain with Replaceable Filter

Engine Manufacturer/Model: FR651V

Transaxle Type: K57 Hydrostatic Integrated with Transaxle

Transaxle Control: Twin Touch™ Pedals

Rear Tires: 20×10-8

Lift System Type: Hydraulic

Cutting Width: Accel Deep™ Mower Deck – 42 In. (107 cm)

U.S. Warranty: 4-Year/300-Hour Bumper-to-Bumper*

*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at or for details.


Power: 21.5 hp (16 kW)

Displacement: 44.3 Cu In. (726 cc)

Manufacturer/Model: FR651V

Type: Overhead Valve, Full-Pressure Lube, Oil Filter

Cylinders: V-Twin, Cast Iron Liners

Governor: Mechanical

Choke/Speed Control: Separate Levers, Automatic Choke Return

Cooling Method: Air

Air Cleaner: Dry, Replaceable

Oil Change: No-Tools Oil Drain with Replaceable Filter

Fuel System

Type: Gasoline

Fuel Delivery: Pulse Pump, Carburetor

Fuel Gauge: Gauge on Dash

Fuel Tank Location: Rear

Fuel Fill Opening: 3 In. (7.6 cm)

Fuel Tank Capacity: 3.3 U.S. Gal. (12.5 L)

Electrical System

Battery: 12 V (340 CCA)

Charging System: Flywheel Alternator, Regulated, 12 Amp

Engine Starter: Bendix

Hour Meter: Yes

Headlights: Two Standard, Incandescent, 27 W

Taillights or Reflector: No

Backup Lights: No

Rear Work Lights: No

12-V Outlet: Optional


Type: K57 Hydrostatic Integrated with Transaxle

Control: Twin Touch™ Pedals

Cruise Control: Yes, Button on Dash

Oil Cooler: Fins and Fan on Transaxle

Oil Filter: Internal, Replaceable

Differential Lock: No

Forward Speed: 0 – 5.8 MPH (0 – 9.3 km/h)

Reverse Speed: 0 – 3.5 MPH (0 – 5.6 km/h)

Brakes: Internal Wet Disc


Frame: Welded Heavy-Duty

Primer/Paint: E-Coat/Powder

Weight Bracket: Standard Rear, Optional Front

Receiver Hitch: No

Front Axle: Cast Iron Front Axle, Front Wheel Ball Bearings

Spindle Bushings: Metal, Replaceable

Front Tires: 15×6-6

Rear Tires: 20×10-8

Hood Material: Fully Enclosed, Molded-In Color Material

Fender Deck Material: Stamped Steel

Floor Mats: Sure Grip Rubber

Storage: Yes, Under Seat and Covered Toolbox

Service Interval Decal: Yes

Fender Handles/Grips: No

Cup Holder: Yes

Equipment Mounting: Yes, Heavy Duty

Maximum Towing Capacity: 600 Lb (272 kg)


Type: Power, Hydraulic

Four-Wheel Steer: Not Available

Steering Wheel: Large, 14 In. (35.6 cm)

Tilt Steering Wheel: No

Turning Radius: 22 In. (55.9 cm)

Uncut Circle Radius: 30 In. (76 cm)


Type: Cut-and-Sewn High-Back

Seat Back Height: 18 In. (46 cm)

Armrests: Optional

Fore-Aft Adjustment: Slide Rail, 15 Positions, While Seated – 6.6 In. (17 cm)

Seat Suspension: Tilt, Two Coil Springs, Three-Position No-Tools Adjustment for Operator Weight

Lift System

Type: Hydraulic

Hydraulic Outlets: No

Mower Cut Height: 13 Positions, 1 – 4 In. (2.5 – 10.2 cm)

Cut Height Increments: 0.25 In. (0.64 cm)

Preset Cut Height: Yes

Mower Deck

Type: Side Discharge

Cutting Width: Accel Deep™ Mower Deck – 42 In. (107 cm)

Construction: Stamped Steel Deck Shell

Mower Deck Material: 12 Gauge Steel, 0.105 In. (2.7 mm)

Mower Wash Port: Yes

Mower Drive System: Electric Power Take-Off (PTO) Clutch, In-Line Belt

Mower Wheels: Two

Mower Wheel Adjustment: Four-Position, Tool Required

Mower Level Adjustment: Exact Adjust Ports and Onboard Deck-Leveling Gauge

Mower Attachability

Type: Slide Under Tractor

Front Draft Arms: Attached with Spring Pins at Two Points

Rear Draft Arms: Two Pins and Spring Clips

Mower Wheels Rotate: No

Drive System: Single Belt


Meets ANSI Standard: Yes

Meets OPEI Standard: Yes

Backup Protection: Reverse Implement Option (RIO)

Safety Video: Yes


Height: 49 In. (1,244 mm)

Overall Length: 71.5 In. (1,817 mm)

Wheelbase: 49.4 In. (1,255 mm)

Width with Mower: 50.5 In. (1,283 mm)

Width with Mower, Deflector Raised for Storage: 51.2 In. (1,300 mm)

Width without Mower: 38 In. (964 mm)

Weight: Mower, No Fuel – 570 Lb (259 kg)

Riding Lawn Tractors
