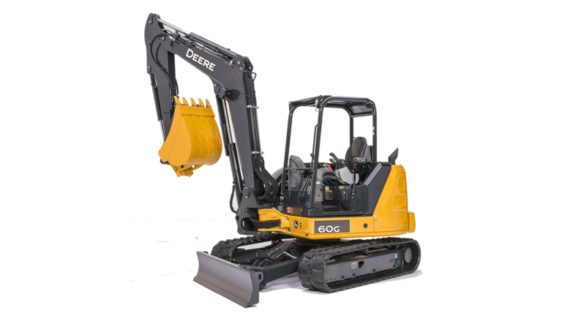

John Deere 60G Compact Excavator

Dig Into Savings: Lock in 0% APR Financing for 48 Months on Select New Construction Equipment!

Images may depict options and attachments not included in base price. Offers end December 31, 2024.

Apply for Financing

Get More Information

Get More Information

Provide some information and our team will follow up with you.

Risk Free Guarantee

Risk Free GuaranteeWe guarantee you will be 100% satisfied with your purchase or we will refund or exchange it for free.

Pricing does not include applicable freight, setup, taxes, delivery, and other fees.

Dig this big “small” idea.

Working within close lot lines and tight deadlines, you need to get the most from your “mini” machine. Enter the John Deere 60G Compact Excavator, designed to deliver big productivity and outsized versatility. We’ve enhanced our mini diggers to boast impressive lift capacity and breakout forces, with the same proven standard and optional features you’ve come to expect from John Deere compact construction equipment.

With operating weights ranging from 1.7 to 6 metric tons, our G-Series Mini Excavators pack powerful might. From variable-width undercarriage and foldable blades to standard climate-controlled cabs, we have a model that’s right for every job – including yours. So go ahead. Try this mini on for size and see just how big small can be.

Contact us today for more information on the John Deere 60G Compact Excavator, and see why Van Wall has been the Midwest’s clear first choice for over 70 years!

  • Net Power: 53 hp (39.6 kW)
  • Maximum Digging Depth: 12 Ft 4 In. (3.77 M)
  • Operating Weight: 13,620 Lbs (6,180 kg)

Change attachments quickly with mechanical coupler

John Deere 60G Compact Excavator AttachmentsThink of changing attachments as a system. With the quick connect auxiliary couplers and the manual quick coupler for attachments, changeover to the next attachment is quick with minimal downtime. When using hydraulic attachments, the auxiliary selector valve lets you quickly choose between attachment one-way and two-way flows.

  • All machines have a manual, wear-compensating quick coupler that is standard equipment. The wedge design of the locking bar compensates for wear at the joint and keeps the coupler joint tight.
  • Mechanical quick coupler makes switching attachments easy with one bolt and two pins.
  • Buckets come in a wide range of sizes and two styles: ditch cleaning and heavy duty. They can be changed using the quick coupler system on the unit.
  • The clamp, sometimes referred to as a thumb, can be used in conjunction with buckets. This aids in the removal of material if it is bulky and does not fit into the bucket completely.
  • Augers feature a self-plumbing bit and reversible rotation for easy withdrawal if an obstruction is encountered.
  • John Deere augers can be equipped with numerous sizes of rock, heavy-duty, standard, and tree/shrub bits.
  • Hydraulic hammers are perfect for quarry or trench work and concrete removal. Use them to break rock, concrete flatwork, and walls; around rebar; or to precut line.
    • With the installation of an adapter plate, all the hammers can be used on John Deere skid steers, making them a very versatile attachment.
  • Compact excavators use common buckets and attachments that customers who own other John Deere compact machines may already have in their fleets.
  • Pin-grabber couplers add versatility to underground and landscape customers who frequently change attachments throughout the workday.
    • These couplers allow an operator to hook up to the bucket backwards when needed to excavate under obstacles, such as sidewalks and utilities.
    • Additional buckets, thumbs, and attachment mounting plates are available for use with these couplers.
  • Hydraulic wedge lock couplers are an additional coupler option available for compact excavators.
    • These couplers use wedge lock buckets, thumbs, and an adapter plate for attachments.
    • These couplers add versatility to underground and landscape customers who frequently change attachments throughout the workday.

Increase efficiency with standard backfill blade

John Deere 60G Compact Excavator BackfillMake a sizable impact on your productivity and profitability with the backfill blade. The backfill blade can be used to level and backfill trenches. It is the same width as the undercarriage width. The blade can add versatility by using the blade and bucket to clamp and carry pipe, rocks, or other bulky items. A bolt-on cutting edge is available as optional equipment for the backfill blade.

  • Backfill blade adds versatility, enabling these compact excavators to grade and fill.
  • Provides extra stability with attachments or when working on uneven terrain.
  • The optional angle blade decreases backfill time by approximately 20%.

Ground level daily service with extended maintenance intervals

John Deere 60G Compact Excavator MaintenanceExtended maintenance intervals enable the machine to remain working for longer periods of productive work before the need to service. This greatly increases uptime and productivity of the unit. Hinged door provides wide-open access to the side-by-side oil cooler and radiator. Cooler design resists trash buildup and allows easier core cleanout. Access is quick and convenient.

  • Extended oil change and greasing intervals contribute to low daily operating costs.
  • Oil impregnated bushings allow the unit to extend grease intervals. Not only does it increase the time between greasing of the unit, this greatly reduces the chances of a problem occurring due to improper maintenance causing downtime to the operation.
  • The additional service door allows the operator and technician better access to components during daily service checks and routine maintenance for improved uptime.
  • No aftertreatment devices needed, reducing maintenance and expense.
  • Parts and service are available at over 1,400 John Deere dealers throughout North America.
  • Wet disc swing brake provides long-term maintenance-free performance.
  • When maintenance or repair is required, simply use the tilt tool to raise the cab forward to an industry leading 50°. This allows easy access to many components under the floor.

Easy-to-maintain undercarriage

John Deere 60G Compact Excavator UndercarriageThe X-frame undercarriage is similar to that of larger excavators, and it is designed to shed dirt and debris from the track frames. A track adjuster is located in each track frame and can be adjusted using a standard high pressure grease gun.

  • Track sag adjustment is conveniently located in the center of the frame to maintain proper track tension and maximize undercarriage life.
  • A track adjuster is located in each track frame and can be adjusted using a standard high pressure grease gun.
  • Tie-downs are provided so loading and transport of the machine can be done quickly.
  • All models have a rear tie-down on the rear of the X-frame.
  • Rubber tracks are standard equipment.
    • Steel track and rubber crawler pads are optional.

A more spacious cab with a wider entryway and unsurpassed visibility

John Deere 60G Compact Excavator Operator StationWith large entryways and virtually unrestricted sightlines, the G-Series’ spacious operator stations deliver all the comfort, convenience, and visibility operators need to bring out their best. Their ergonomically designed operator stations are built to accommodate even larger operators.

  • Spacious operator stations have wide entryways, making entrance and exit easier than ever.
  • Optional cab’s front glass is expansive for exceptional visibility and higher productivity.
  • An adjustable work light at the top left of the canopy or cab increases job efficiency at night.
  • A slip-resistant entry is provided for safe access to the operator’s seat.
  • Foldable travel pedals increase foot and leg room.
  • A suspension seat is standard from the factory.
  • All controls are conveniently located to the operator’s right, including the optional radio.
  • Pilot control levers enable an operator to control the boom, bucket, arm, and swing functions.
  • Automatic, high-velocity bi-level climate control system with automotive-style adjustable louvers helps keep the glass clear and the operator comfortable.
  • Control pattern selector valve is conveniently located in a compartment beneath the seat and includes a sight glass that displays the selected pattern.
  • All canopies and cabs meet the following safety requirements:
    • Tip Over Protective Structure (TOPS)
    • Roll Over Protective Structure (ROPS)
    • Falling Object Protective Structure (FOPS)
  • The optional cab comes standard with a heater.
  • Both the cab and canopy units come with a step area for entry and exit.
  • An auto speed change system for high speed travel is employed.
    • The turtle speed lock switch will keep the machine in low when propelling.
    • The rabbit speed lock will always keep the unit in the higher mode unless a large load is applied to travel, like steering changes. The machine will then automatically shift to low, but return to high when the load is reduced.

Fuel savings with Auto-Idle and economy work mode

John Deere 60G Compact Excavator Fuel EfficiencyLow daily operating costs with improved fuel economy and economy/power modes. These machines have improved fuel economy over the previous series.

  • Auto-Idle automatically reduces engine speed when hydraulics aren’t in use.
  • Auto shutdown further conserves precious fuel.
  • Power/economy modes optimize power for digging applications and significantly improve fuel efficiency.

Driveline

Emission Rating: Tier 4

Engine Manufacturer: Yanmar

Number of Cylinders: 4

Displacement: 203 Cu In. (3.32 L)

Rated Speed: 2,000 RPM

Engine Output, Net: 53 hp (39.6 kW)

Number of Carrier Rollers (Each Side): 1

Number of Track Rollers (Each Side): 4

Track Shoe Width: 16 In. (400 mm)


Dimensions

Transport Length, Mono Boom: 18 Ft 11 In. (5,760 mm)

Maximum Transport Height: 8 Ft 4 In. (2,540 mm)

Overall Undercarriage Width: 6 Ft 7 In. (2,000 mm)

Track Length on Ground: 6 Ft 6 In. (1,990 mm)

Overall Undercarriage Length: 8 Ft 2 In. (2,500 mm)

Tailswing Radius: 4 Ft 3 In. (1,300 mm)

Ground Clearance: 13 In. (335 mm)

Dozer Blade Height: 16 In. (420 mm)

Dozer Blade Width: 6 Ft 7 In. (2,000 mm)

Width Over Fixed Tracks: 6 Ft 7 In. (2,000 mm)

Track Gauge: 5 Ft 3 In. (1,600 mm)

Digging Reach, Mono Boom: 20 Ft 5 In. (6,230 mm)

Dig Height, Mono Boom: 19 Ft 7 In. (5,960 mm)

Dump Height: 13 Ft 8 In. (4,170 mm)

Dig Depth: 12 Ft 4 In. (3,770 mm)

Standard Arm: 4 Ft 11 In. (1,500 mm)


Capacities

Fuel Tank: 31.7 U.S. Gal. (120 L)

Hydraulic Tank: 21.1 U.S. Gal. (80 L)

Number of Batteries: 1

Voltage: 12 V


Performance

Ground Bearing Pressure: 5.12 PSI (35 kPa)

Swing Speed: 9.5 RPM

Travel Speed – High: 3 MPH (4.8 kph)

Arm Tearout: 6,990 Lbf (31.1 kN)

Bucket Breakout: 9,240 Lbf (41.1 kN)

Total Flow: 38 U.S. Gal./Min. (144 L/Min.)


Weights

Operating Weight: 13,620 Lbs (6,180 kg)

60G Compact Excavator
