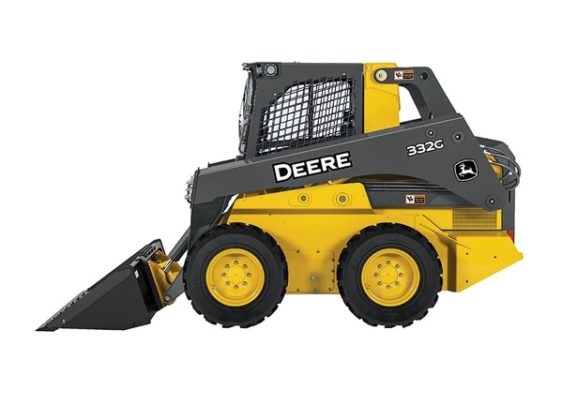

When you need small equipment that can rise high, master heavy loads, and deliver impressive boom and bucket breakout forces, the John Deere 332G Skid Steer can be the do-it-all machine that fits the work you do. Its vertical-lift configuration, amped-up performance, and wide range of options are the result of some of the best ideas we’ve heard – and put into action on the entire lineup of our compact construction equipment – from users just like you.
Whether you’re buying your first loader or boosting the flexibility of an existing fleet, this reimagined compact is designed to elevate your bottom line. Like all of our G-Series Skid Steer models, it’s packed for productivity with faster transport speed options, easy trailering with convenient standard tie-downs, ultra clear sightlines, and easy-access service points. You’ve got a full job ahead, and we’ve got the power you need to get in, get comfortable, and get it done.
Contact us today for more information on the John Deere 332G Skid Steer, and see why Van Wall has been proudly providing the Midwest with quality skid steers for over 70 years!
Gross Power: 100 hp (74.6 kW)
Net Power: 96.6 hp (72 kW)
Rated Operating Capacity: 3,600 Lbs (1,634 kg)
Operating Weight: 10,000 Lbs (4,540 kg)
Increase your machine’s versatility with John Deere’s wide array of attachment offerings
With over 100 attachments offered in the John Deere portfolio, you can make the most out of your skid steer by equipping it with a number of popular attachments.
Increased auxiliary hydraulic flows and power over previous models enable greater performance while running attachments and optional high-flow hydraulics lets operators better utilize attachments like snow blowers, rotary cutters, or brooms.
Internally mounted auxiliary couplers and sleeves mean that couplers and hoses are better protected from damage.
Optional electrically-actuated Quik-Tatch™ enables some attachment connecting to take place within the cab, reducing the need for exiting and re-entering the cab to manually connect attachments.
Creep control (offered within the Joystick Performance Package) allows operators to perform precise tasks that require full hydraulic flow and power while running at lower travel speeds.
Enjoy all day comfort with the spacious and ergonomically friendly cab
The spacious and pressurized cab means operators can stay fresh throughout the entire workday through designs that minimize noise levels and keep water and dust out. Switchable controls allow an operator to choose the pattern they prefer (ISO-H pattern, foot controls, or ISO plus foot controls), meaning they can get to work quicker and easier.
The ergonomic design includes a larger and continuous footwell to allow for extra room and repositioning of the operator’s feet to maximize comfort.
Controls are in operator-friendly locations that allow for repetitive movements to take place easier, meaning that operators will not tire out as quick throughout the day.
Multiple slip-resistant steps and six handles mounted on the interior and exterior of the machine result in a safer and more natural way to get in and out of the cab.
Expertly designed heating, ventilation, and air conditioning (HVAC) system with vents spaced along the side, bottom, and rear of the cab allow for work to take place in any season and keeps the operator comfortable with strategically placed vents.
Maximize productivity with the electrohydraulic (EH) boom performance package
The optional factory-installed EH boom performance package offers increased productivity through shorter cycle times for applications where repetitive boom functions are common by automating these functions and setting them to match operator preference from inside the cab.
Return to dig (RTD) allows the operator to automatically set the bucket or other attachment to their designated ready-to-work position.
Return to carry (RTC) allows the operator to use the joystick detents to automatically reset the boom to a designated ready-to-carry position.
Boom height kickout (BHKO) allows the operator to pre-select a specific boom height based on truck/hopper height and use joystick detents to automatically stop at a specific height.
Electronic self-level (ESL) allows the self-level to work during boom up and down, unlike the hydraulic self-level option that works only on boom up.
Productivity enhancements that can benefit you regardless of the machine’s application
Skid steers and compact track loaders (CTLs) have features that result in higher productivity in applications like V-pattern truck loading, bale handling, and grading when compared to the competition.
Increased bucket breakout forces result in better handling of pallets of pavers or other heavy materials in addition to helping heap the bucket with larger loads.
Anti-stall feature monitors engine load to quickly prevent the engine from stalling, allowing the operator to use the maximum horsepower efficiently when pushing large amounts of material.
Differential steering allows the operator to maintain speed and traction when pushing through a turn.
Standard two-speed drivetrain delivers travel speeds up to 8 MPH (12.8 kmh) for CTLs that allow operators to get from one side of the job to the other much quicker.
Ease of serviceability allows you to spend more time completing the tasks at hand
Enhanced serviceability features and ease of access to daily and preventative maintenance points ensures that these tasks do not significantly cut into working hours.
The hood tilts up for ground level access to the dipstick, fuel and fluid filler necks, filters, and see-through reservoirs.
The cab is able to swing up and out of the way in less than five minutes for wide-open drivetrain access. A single person is able to safely and efficiently lift the boom and lock it out, exit the machine, raise the cab, and remove the footwell.
Removable metal side panels on the left and rear are lightweight and perforated with handles at optimized lifting points.
The removal of the footwell with just six total nuts and bolts allows for easy cleaning of dirt and debris that enters the cab.
Excellent visibility for increased situational and jobsite awareness
Enhanced visibility features increase jobsite awareness and allow operators to be as precise and productive as possible.
Optional deluxe LED lighting provides increased visibility early in the morning or at night over the standard halogen package.
Clear sight from the seat under the boom arms to see the tires, even when the boom is down, and great visibility to the cutting edges and Quik-Tatch™ lock and unlock indicators.
Rear view camera, low-sloped hood, and a high cross-tube on the upper linkage result in unmatched rear visibility.
Lift Geometry: Vertical
Fleet Management: Yes
Precision Guidance: No
Proximity Guidance: No
Engine Manufacturer: Yanmar
Engine Model: 4TNV94FHT
Emission Rating: Tier 4
Aspiration: Turbo, Intercooled
Displacement: 186.3 Cu In. (3.1 L)
Rated Speed: 2,500 RPM
SAE Power, Net: 96.6 hp (72 kW)
SAE Power, Gross: 100 hp (74.6 kW)
Maximum Gross Torque: 291.3 Lb-Ft (395 Nm)
Drive Chain Rating (ANSI): 100 – HD
Standard Tire Size: 14 – 17.5 – 14 PR Hauler
Length, No Bucket: 122 In. (3,100 mm)
Length, Foundry Bucket: 146 In. (3,710 mm)
Width, No Bucket: 78.4 In. (1,990 mm)
Overall Height: 86.3 In. (2,190 mm)
Ground Clearance: 9.7 In. (250 mm)
Wheelbase: 49.9 In. (1,270 mm)
Rear Departure Angle: 29°
Height to Hinge Pin: 132 In. (3,350 mm)
Dump Angle: 48°
Dump Height, Maximum Foundry: 106.1 In. (2,690 mm)
Reach at Maximum Foundry Dump Height: 28 In. (710 mm)
Rollback, Ground Level: 35°
Fuel Tank: 25.5 U.S. Gal. (96.5 L)
Rated Operating Capacity, Foundry: 3,600 Lbs (1,633 kg)
Tipping Load, Foundry: 7,200 Lbs (3,269 kg)
Maximum Axle Torque: 6,830 Lb-Ft (9,289 Nm)
Maximum Speed: 12 MPH (19.3 kph)
Lift Breakout, Foundry: 8,520 Lbf (37.8 kN)
Bucket Breakout, Foundry: 13,904 Lbf (61.8 kN)
Hydraulic Power: 50 hp (37.29 kW)
Hydraulic Power, Optional: 82.1 hp (61.234 kW)
Pump Output: 25 U.S. Gal./Min. (95 L/Min.)
Pump Output, Optional: 41.1 U.S. Gal./Min. (156 L/Min.)
