- Rated Operating Capacity: 994 kg (2,190 lb.)
- Gross Horsepower: 51.7 kW (69 hp)
- Net Horsepower: 49.4 kW (66 net hp)
- Operating Weight: 3246 kg (7,150 lb.)

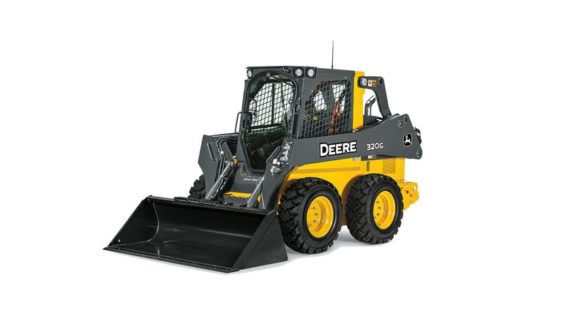

John Deere 320G Skid Steer
Images may depict options and attachments not included in base price.
Get More Information
Provide some information and our team will follow up with you.
Specs & Compare
Add Model
| Specs & Compare | ||||
|---|---|---|---|---|
| Select up to 4 models to compare specifications |
John Deere 320G Skid Steer |
DESCRIPTION
| Lift Geometry | Vertical | |||
|---|---|---|---|---|
| Fleet Management | Yes | |||
| Precision Guidance | No | |||
| Proximity Guidance | No |
DRIVELINE
| Engine Manufacturer | Yanmar | |||
|---|---|---|---|---|
| Engine Model | 4TNV98C | |||
| Emission Rating | Tier 4 | |||
| Aspiration | Naturally Aspirated | |||
| Displacement, ltr (Inches³) | 3.3 (203) | |||
| Rated Engine Speed, rpm | 2500 | |||
| SAE Net Power, kW (hp) | 49.4 (66) | |||
| SAE Gross Power, kW (hp) | 51.7 (69) | |||
| Max. Gross Torque, Nm (lbf / ft) | 241 (178) | |||
| Drive Chain Rating [ANSI] | 80 – HD | |||
| Tire size – Standard | 12 x 16.5 – 12 PR SKS |
DIMENSIONS
| Length – No Bucket, mm (inches) | 2850 (112.3) | |||
|---|---|---|---|---|
| Length – With Bucket Foundry, mm (inches) | 2460 (136.3) | |||
| Width – No Bucket, mm (inches) | 1700 (67) | |||
| Overall Height, mm (inches) | 2060 (81.1) | |||
| Ground Clearance, mm (inches) | 240 (9.3) | |||
| Wheelbase, mm (inches) | 1120 (44.2) | |||
| Rear Departure Angle, Degrees | 28 | |||
| Height to Hinge Pin, mm (inches) | 3100 (122.2) | |||
| Dump Angle, Degrees | 43 | |||
| Dump Height – Maximum Foundry, mm (inches) | 2480 (97.7) | |||
| Reach – Max Dump Height Foundry, mm (inches) | 740 (29.2) | |||
| Rollback – Ground Level, Degrees | 33 |
CAPACITIES
| Fuel Tank, ltr (gallons (US)) | 79 (21) |
|---|
PERFORMANCE
| Rated Operating Capacity – Optional Counterweight Foundry, kg (lbs) | 1067 (2350) | |||
|---|---|---|---|---|
| Rated Operating Capacity – Foundry, kg (lbs) | 994 (2190) | |||
| Tipping Load – Foundry, kg (lbs) | 1989 (4380) | |||
| Axle Torque – Maximum, Nm (lbf / ft) | 6771 (4994) | |||
| Speed – Maximum, kph (mph) | 11.1 (6.9) | |||
| Speed – Maximum Option, kph (mph) | 17.9 (11.1) | |||
| Breakout – Lift Foundry, kN (lbf) | 16.5 (3725) | |||
| Breakout – Bucket Foundry, kN (lbf) | 26.6 (6000) | |||
| Hydraulic Power, kW (hp) | 28.842 (38.6) | |||
| Hydraulic Power – Option, kW (hp) | 41.414 (55.5) | |||
| Pump Output, lt/min (gallons (US) / min) | 78 (21) | |||
| Pump Flow – Option, lt/min (gallons (US) / min) | 112 (30) | |||
| System Pressure, bar (PSI) | 224.08 (3250) |
WEIGHTS
| Operating Weight – Foundry, kg (lbs) | 3246 (7150) |
|---|
